Linear Shower Drain 28″

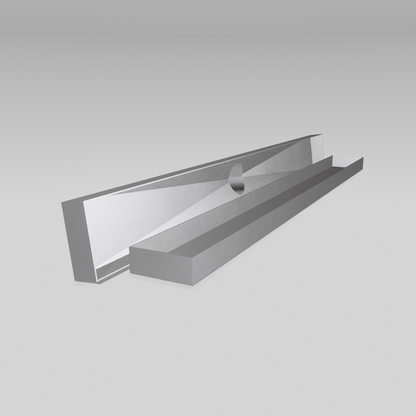

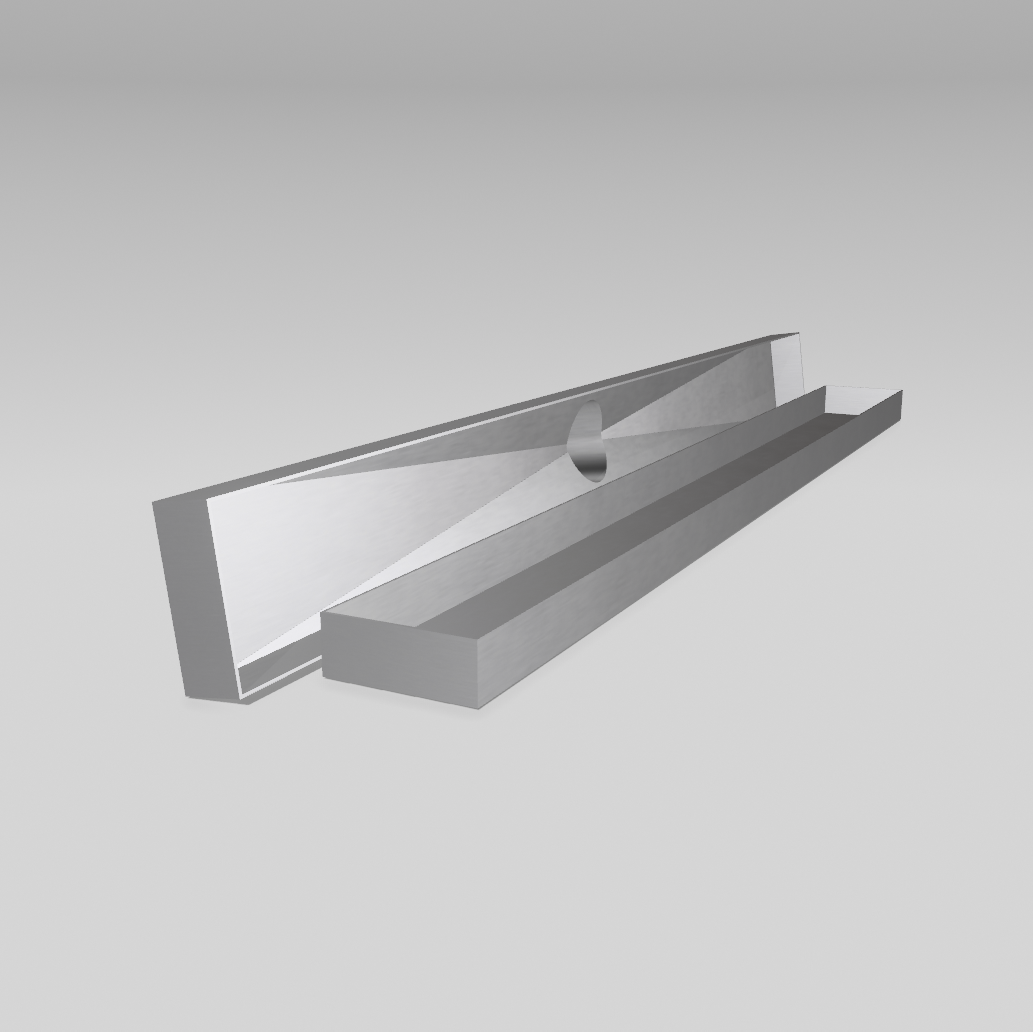

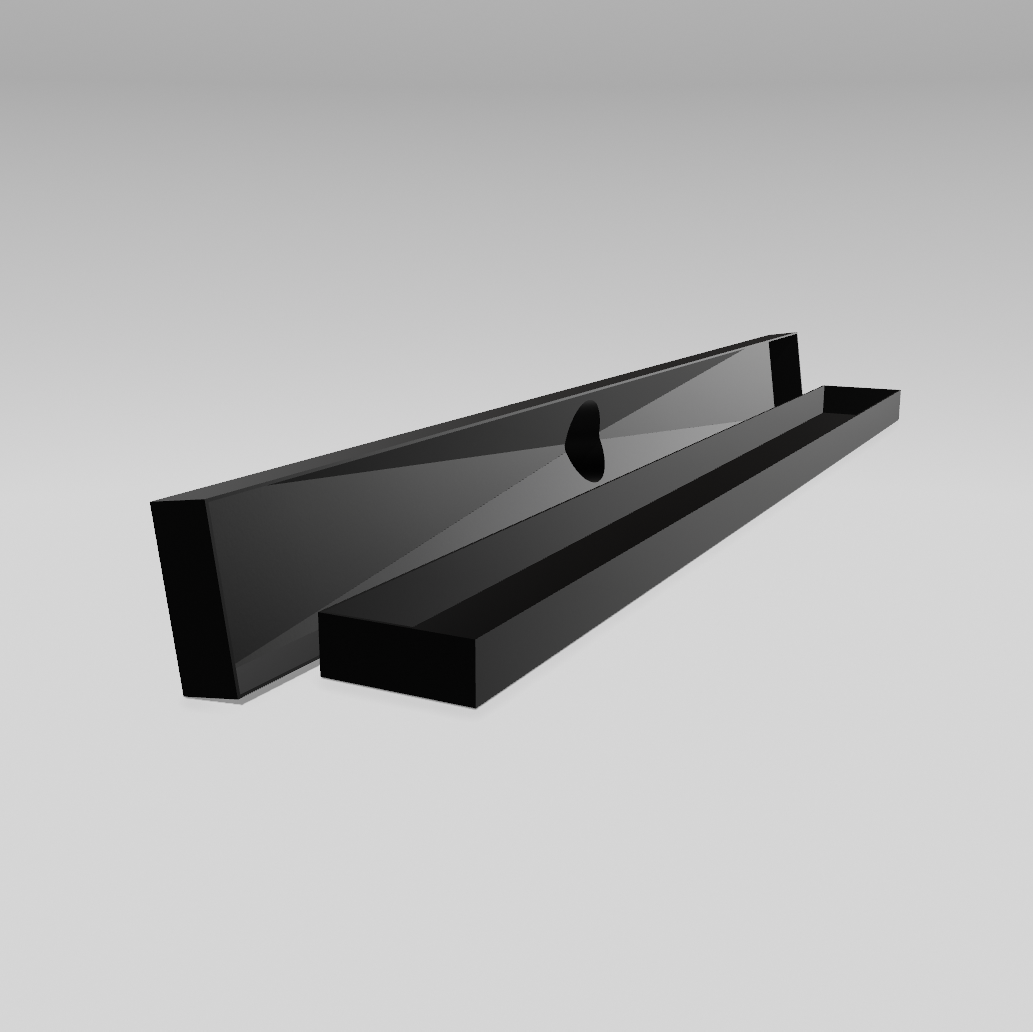

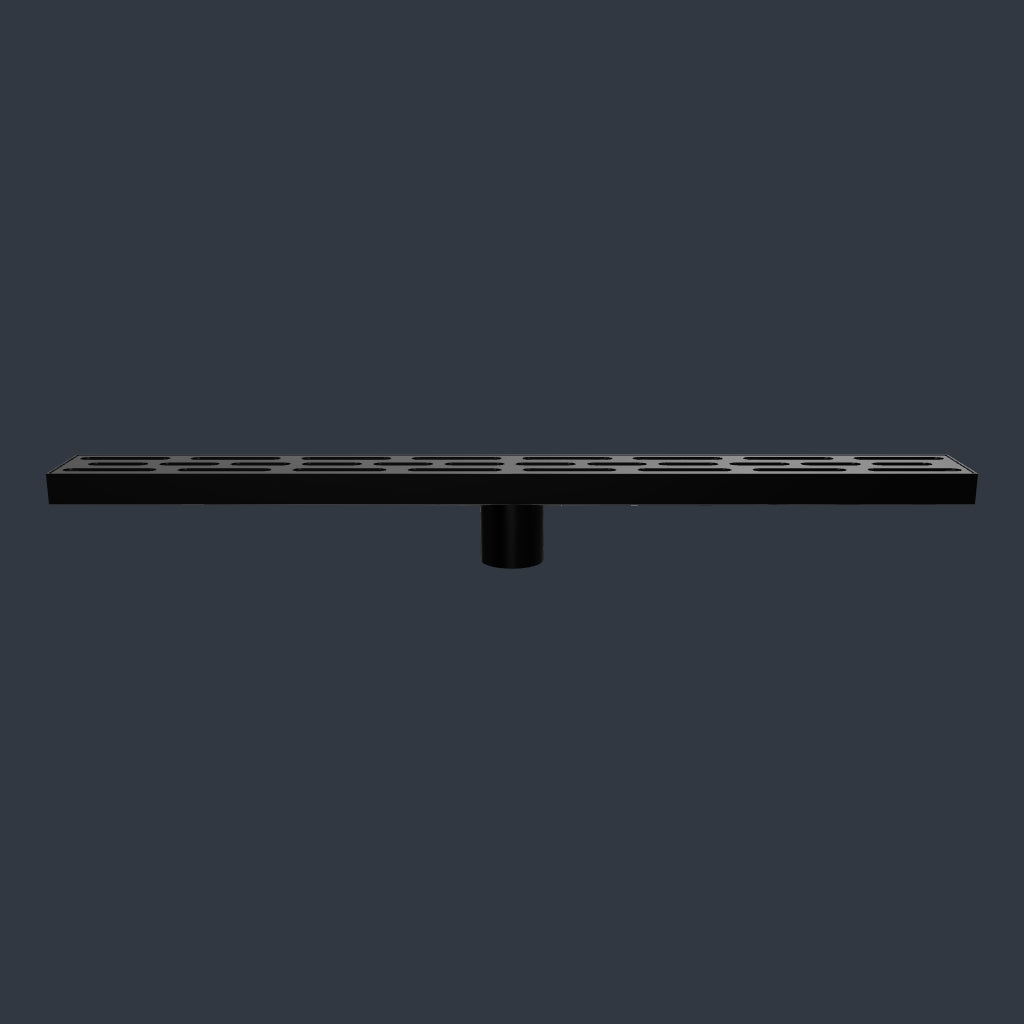

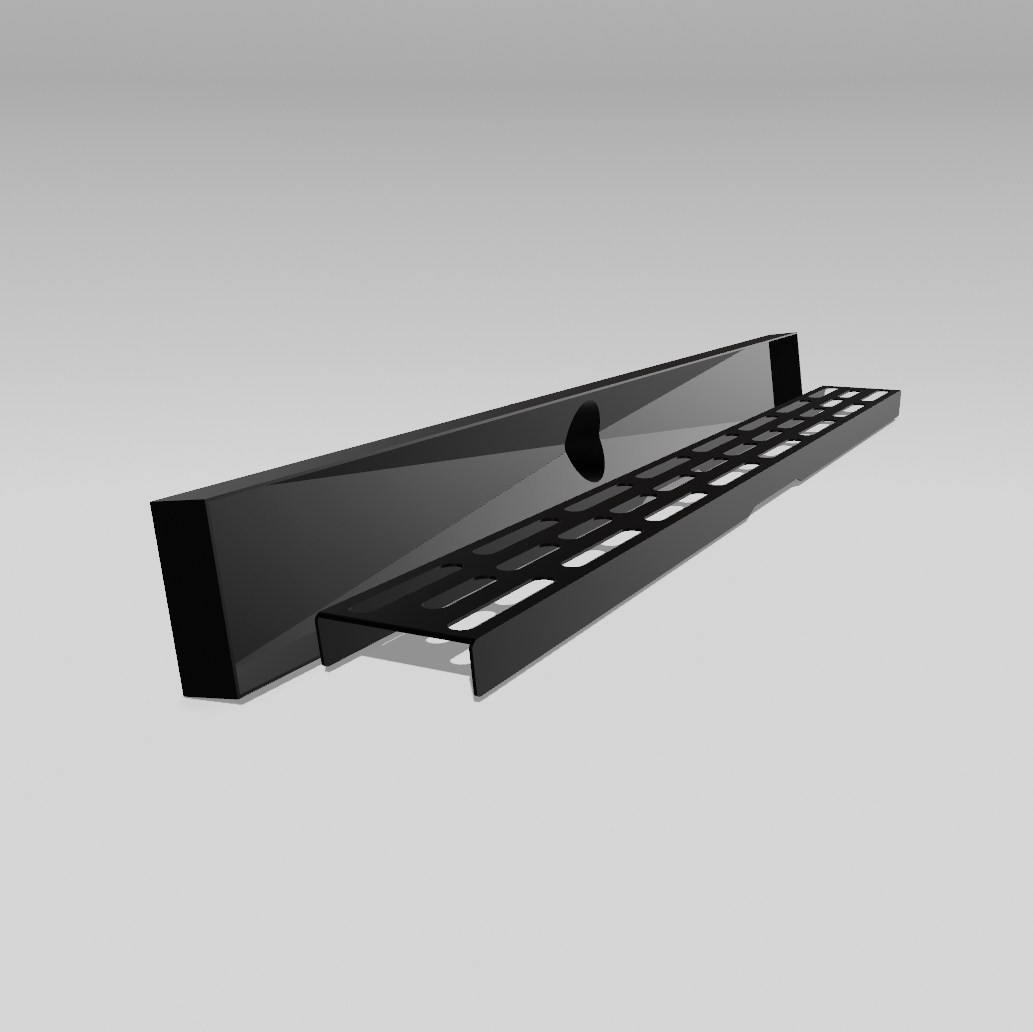

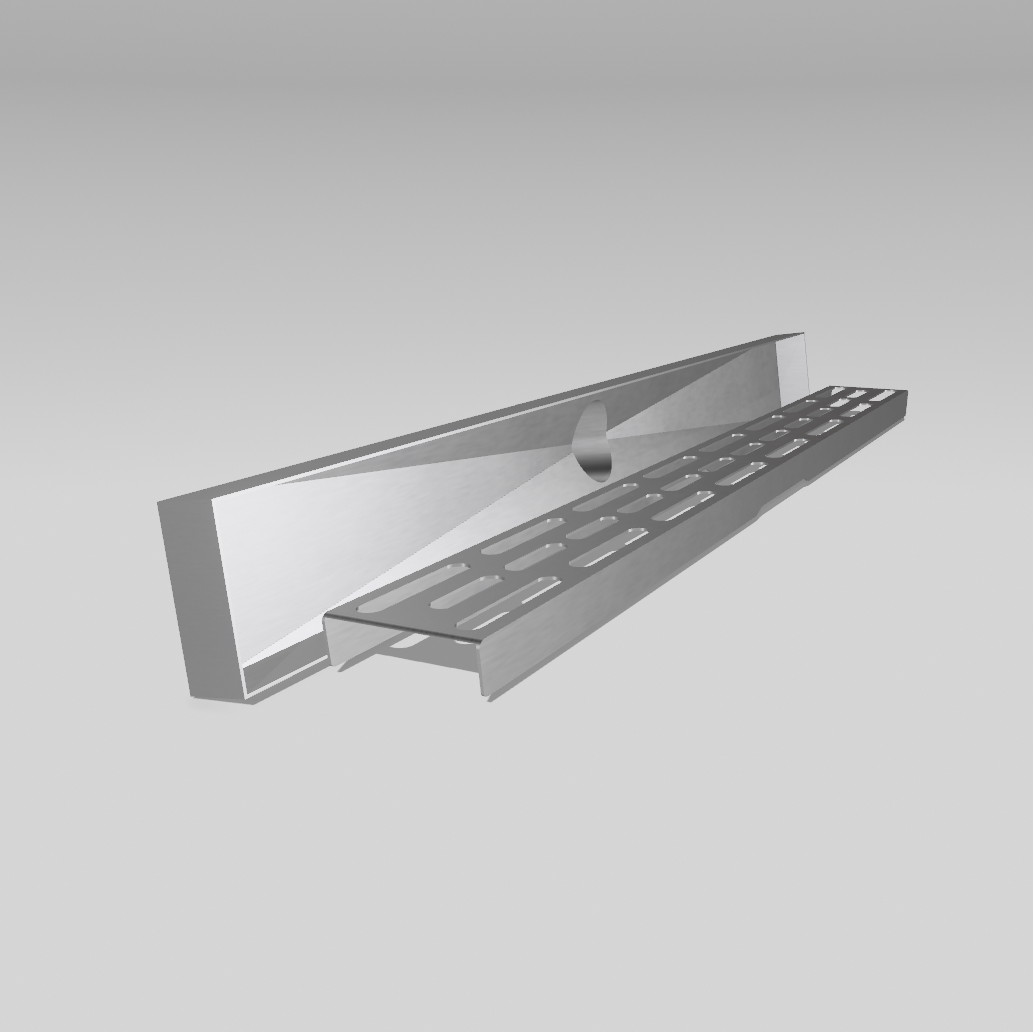

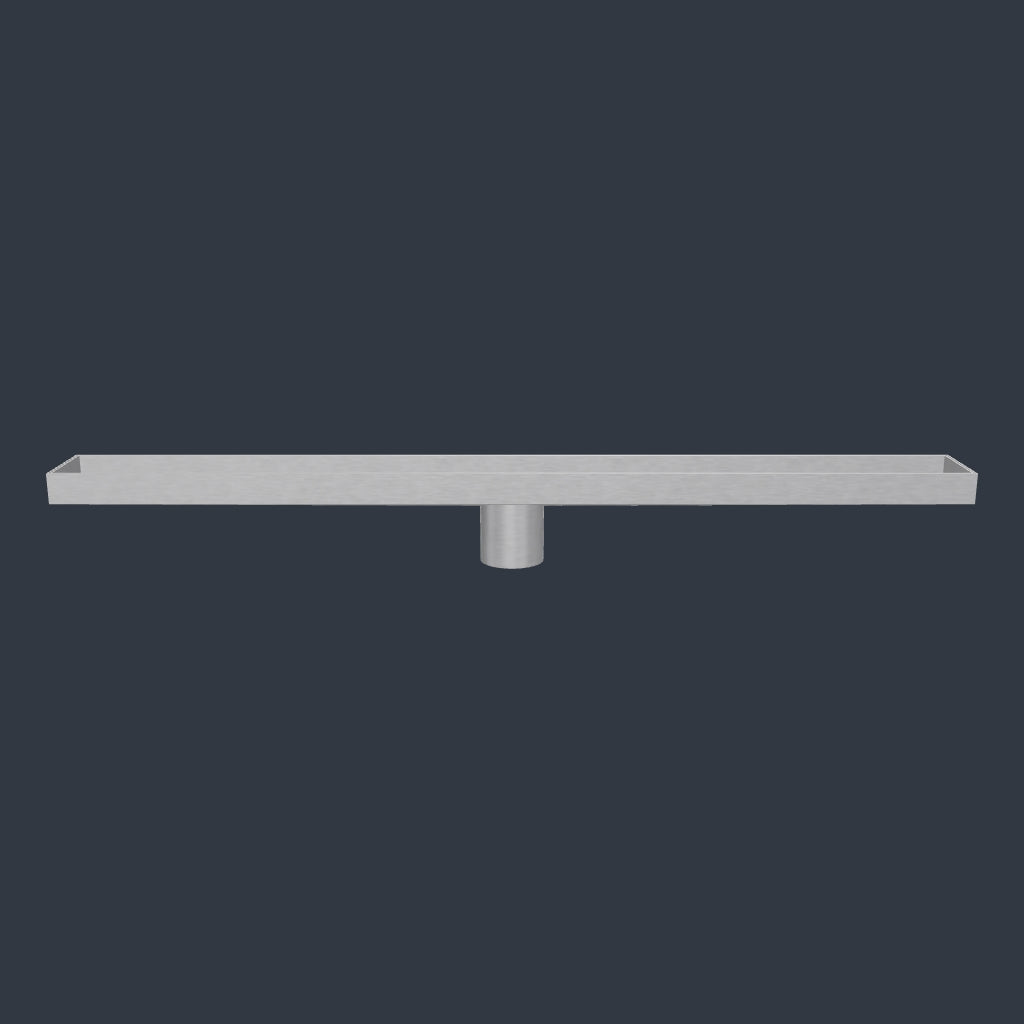

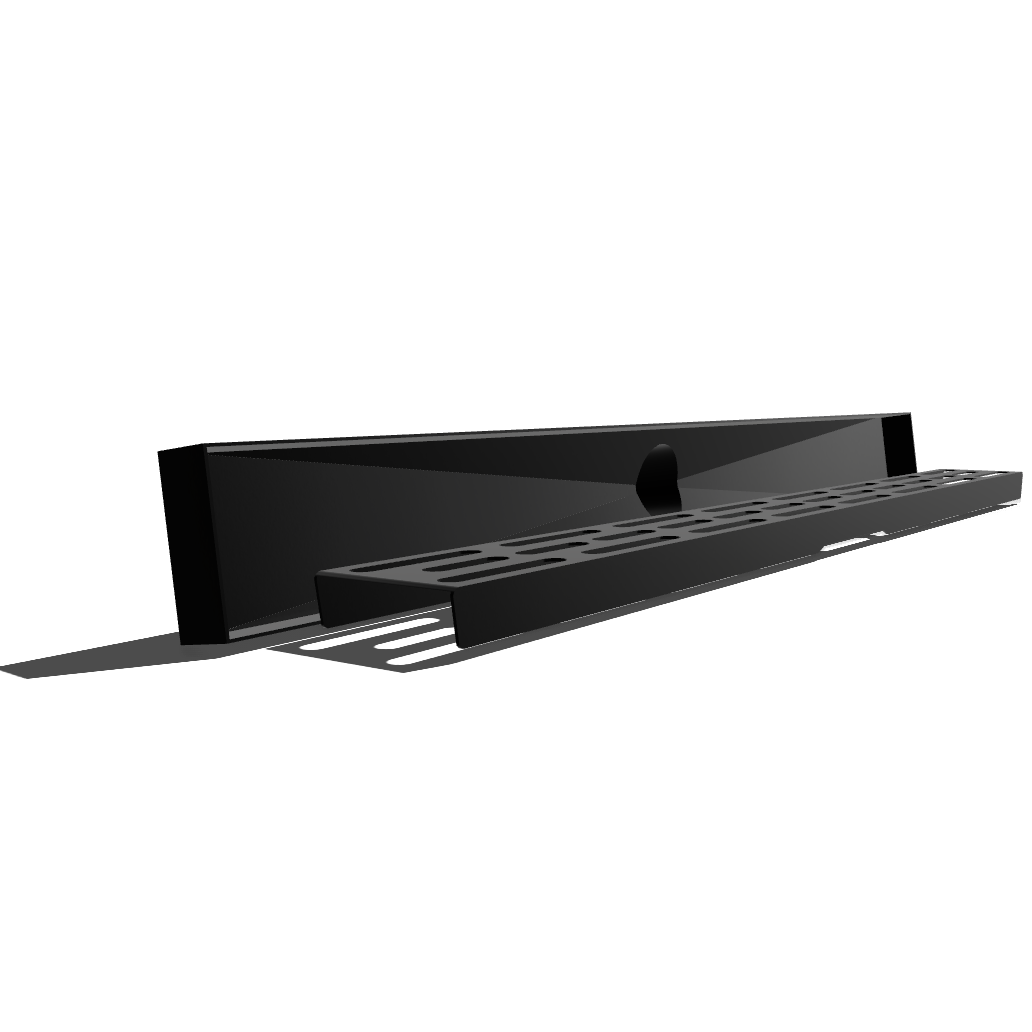

The 28-inch linear shower drain is a continuous-channel floor drain that runs water off the pan without breaking the line of the tile. The channel and cover are 304 stainless steel for everyday wet-zone corrosion resistance. Choose the slotted grate cover for a crisp linear reveal, or flip the reversible tile-in tray to set matching tile directly into the surface for a near-invisible finish. Finishes are brushed nickel or matte black. A 2″ outlet ties into standard shower drain bases, and the channel services from the top with a lift hook and removable hair-catch basket. Suited to single-slope shower pans and large-format tile layouts.
Features
- 28-inch linear channel for single-slope shower pans
- 304 stainless steel body and cover, wet-zone corrosion resistance
- Reversible tile-in tray or slotted grate cover
- Brushed nickel or matte black finishes
- 2″ outlet, fits standard shower drain bases
- Top-serviceable lift hook and removable hair-catch basket
- 2″ threaded adaptor included for outlet connection
Specifications
- Type: Linear shower drain (floor)
- Length: 28″ (711mm)
- Material: 304 stainless steel (channel and cover)
- Finishes: Brushed nickel, matte black
- Cover options: Reversible tile-in tray or slotted grate
- Outlet: 2″ via threaded adaptor
- Compatible with: Standard shower drain bases and bonded waterproofing assemblies
