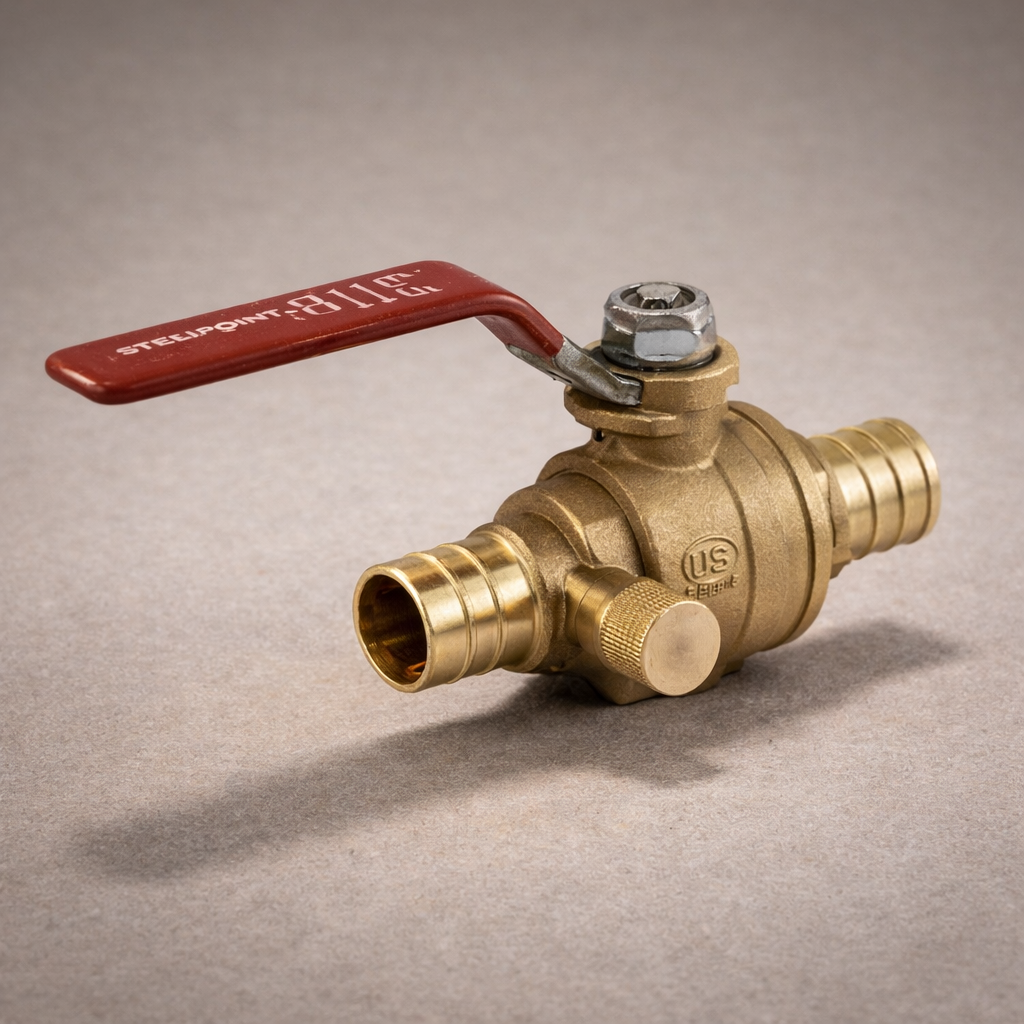

PEX Ball Valve with Drain | Lead-Free Brass Shut-Off with Bleeder Cap | 1/2″, 3/4″, 1″ F1807 Crimp | Winterizing & Service Stop

PEX Ball Valve with Drain | Lead-Free Brass Shut-Off with Bleeder Cap | 1/2″, 3/4″, 1″ F1807 Crimp | Winterizing & Service Stop

Actual product specifications and colors may differ from the images displayed.

$5.67 CAD
$5.67 CAD
Sale Sold out
Shipping calculated at checkout.
Size
Liquid error (sections/main-product line 548): Could not find asset snippets/pickup-availability.liquid
  • Local Delivery Icon Local delivery available for orders over $500
  • Package Icon Eligible for Shipping
View full details

Shut off. Drain down. Freeze protection.

Master your home’s hydration system with this premium PEX Ball Valve with Drain—the professional’s choice for seasonal maintenance and zone isolation. Forged from high-grade Lead-Free DZR Brass, this valve features a precision side-port bleeder cap, allowing you to easily drain downstream water lines to prevent freezing or to service fixtures without a mess. Designed for F1807 PEX systems, it offers a full-port flow and a quarter-turn handle for effortless control, ensuring your plumbing remains secure, compliant, and ready for any season.

Features
  • Integrated Drain Cap: Features a side bleeder/waste vent with a gasketed cap, allowing you to drain the non-pressure side of the line to prevent burst pipes in winter or for safe servicing.
  • Lead-Free Construction: Forged from Lead-Free DZR Brass (Dezincification Resistant), ensuring compliance with safe drinking water laws and resisting corrosion in harsh water environments.
  • Standard F1807 Crimp: Compatible with all PEX-B tubing, copper crimp rings, and stainless steel pinch clamps for a secure, leak-proof connection.
  • Quarter-Turn Control: Heavy-duty plated handle provides instant on/off control with a smooth 90-degree motion, far superior to old gate valves.
  • Double O-Ring Seal: Engineered with a blow-out proof stem and double O-rings (EPDM/NBR) to prevent stem leaks over decades of use.
Specifications
  • Material: Lead-Free Forged Brass (DZR Alloy)
  • Connection: PEX Barb x PEX Barb (ASTM F1807)
  • Valve Type: Full Port Ball Valve with Waste/Drain
  • Pressure Rating: 400 WOG (Water, Oil, Gas) / 150 PSI at 200°F
  • Certifications: cUPC, NSF/ANSI 61, NSF 372 (Lead-Free)
  • Handle: Zinc-plated steel with vinyl grip
