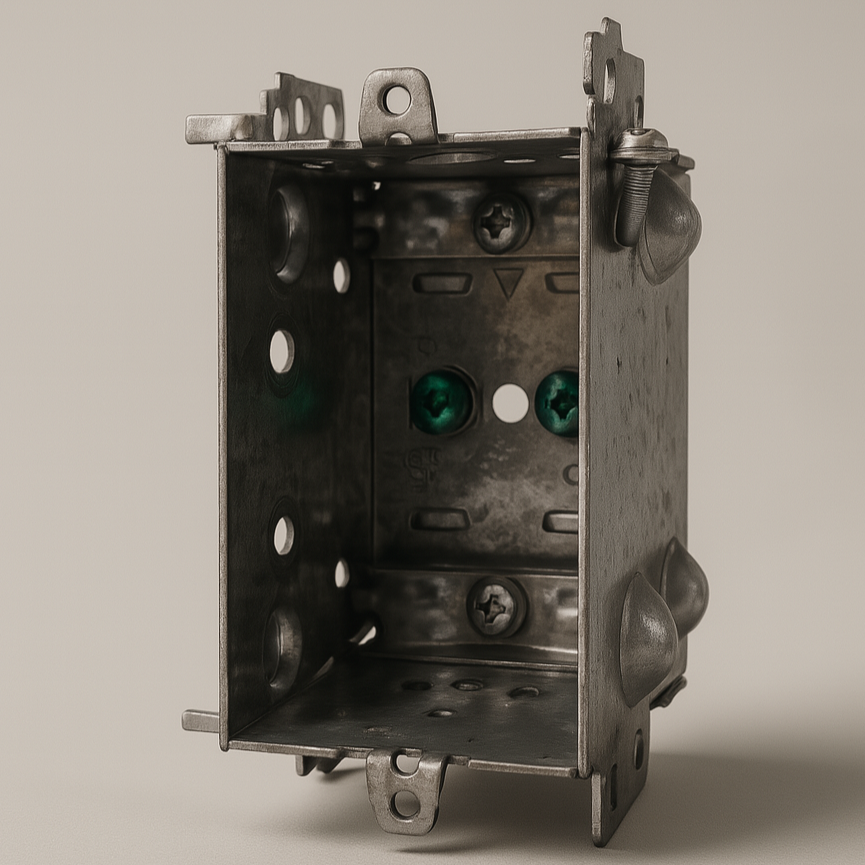

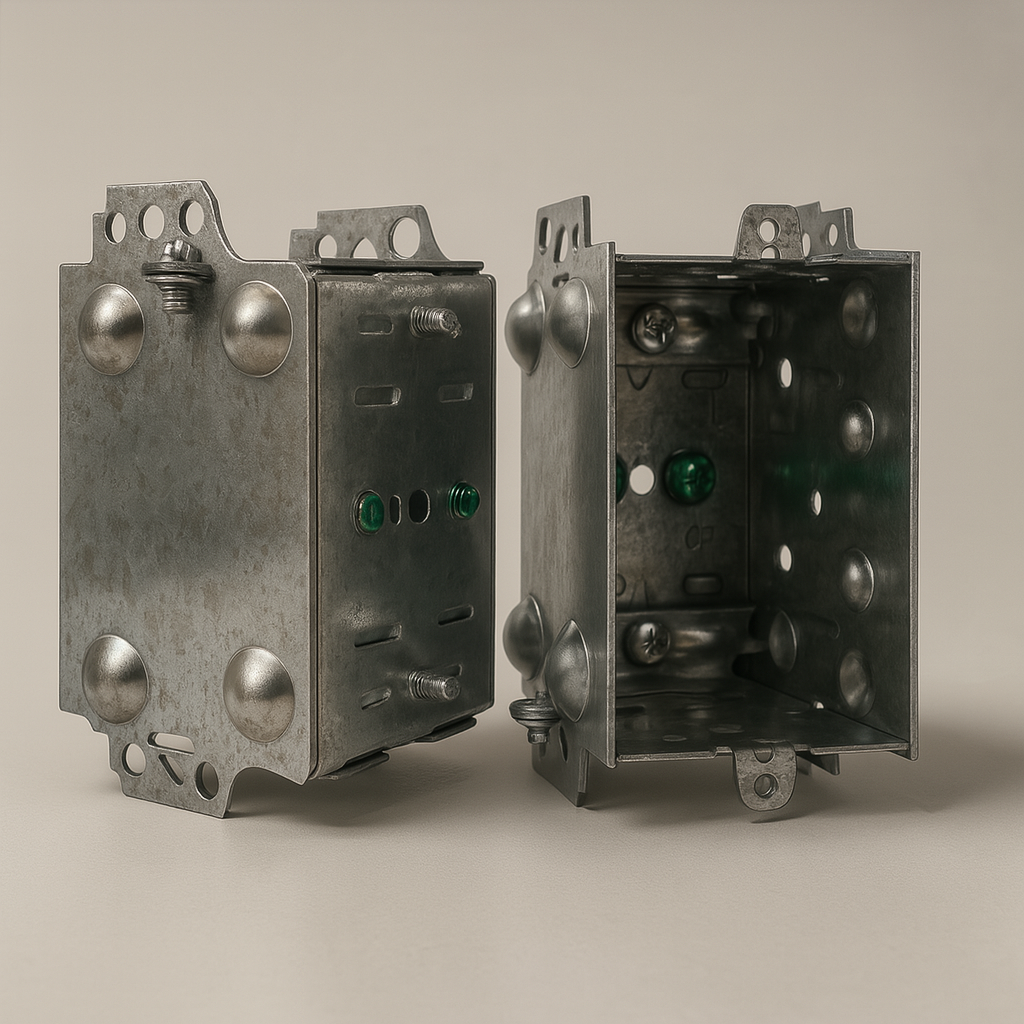

Nodexa 1-Gang Gangable Device Box — 3″ × 2″ × 2-1/2″, Galvanized Steel (ETL)
Nodexa 1-Gang Gangable Device Box — 3″ × 2″ × 2-1/2″, Galvanized Steel (ETL)
Actual product specifications and colors may differ from the images displayed.
Couldn't load pickup availability
Pickup available at GD KennedyUsually ready in 2 hours
View store information
-
Local delivery available for orders over $500
-
Eligible for shipping
Gang It. Box It. Done.
The Nodexa 1-Gang Gangable Device Box is the steel rough-in box built for electricians who plan for change. Formed from 1.1mm galvanized steel — heavier wall than the import-grade boxes that crush under a stud gun — it takes a switch, receptacle, or dimmer in a true 12.5 cubic inches of fill. The gangable design is the point: pull the removable side plate and gang two, three, or more boxes into a continuous multi-device run without swapping to a larger box or re-cutting the opening. Standard 1/2-inch knockouts land conduit or NMD cable on any side, and the 2-1/2-inch depth leaves room to fold conductors cleanly behind the device. ETL Listed under 4009580 for residential and commercial framing, it mounts as new work to the stud or adapts to old work with the right supports. It's a NorthLine Signature electrical part: stocked deep, priced for the contractor buying by the sleeve, and built to the spec the job actually needs.
Features
- Gangable design — pull the removable side plate to join multiple boxes into 2-gang, 3-gang, or longer device runs on site
- True 12.5 cu. in. capacity — fits standard switches, receptacles, and dimmers; always confirm box-fill for crowded conductors
- 1.1mm galvanized steel — heavier wall than import-grade boxes; resists rust and crush better than plastic
- 1/2″ knockouts — standard size for conduit or NMD cable entry on multiple sides (connectors sold separately)
- New-work or old-work ready — mounts to studs for new framing, or adapts to finished walls with proper supports or F-clips
- ETL Listed (4009580) — certified for code-compliant residential and commercial installation
Specifications
- Brand: Nodexa (NorthLine Signature)
- Gang Configuration: 1-Gang, Gangable
- Dimensions: 3″ H × 2″ W × 2-1/2″ D
- Volume: 12.5 cu. in.
- Material: Galvanized Steel, 1.1mm
- Knockouts: 1/2″ (standard)
- Mounting: New work (stud-mount) / old work (with supports)
- Certification: ETL Listed (4009580)
