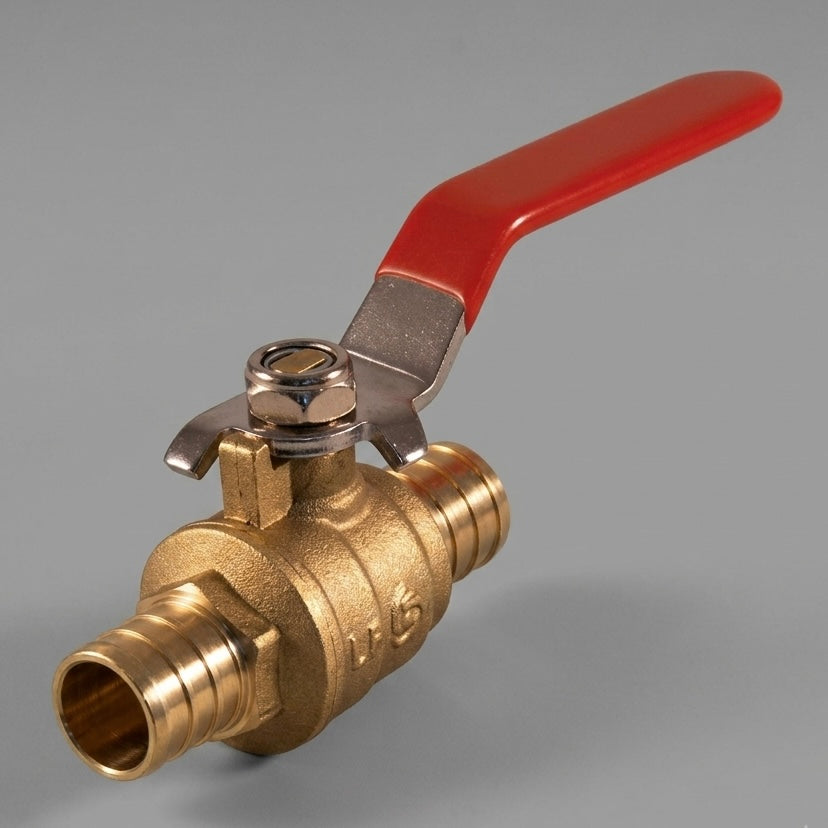

3/4″ PEX Ball Valve — Full Port, Lead-Free Brass, F1807 Crimp Shut-Off
3/4″ PEX Ball Valve — Full Port, Lead-Free Brass, F1807 Crimp Shut-Off
Actual product specifications and colors may differ from the images displayed.
Couldn't load pickup availability
Pickup available at GD KennedyUsually ready in 2 hours
View store information
Quarter-Turn Certainty, Forged in Brass
A PEX ball valve earns its place the first time a fixture needs isolating without draining the whole line — one quarter-turn of the lever and the run is dead, no multi-turn gate to seize or weep years later. This 3/4″ valve is forged from lead-free brass rather than cast, so there are no internal pinholes waiting to open under pressure, and the full-port bore carries the tubing's full diameter for zone isolation and shut-off without the pressure drop a reduced-port valve introduces. The F1807 barbed ends crimp to PEX-A, PEX-B, and PEX-C with a standard copper ring or stainless pinch clamp, seating the valve permanently into a supply line or manifold branch. A blow-out-proof stem and dual EPDM O-ring packing keep the handle stem dry through years of daily cycling, and the vinyl-gripped lever reads open or closed at a glance across a mechanical room. It is the reliable stop you specify once and stop thinking about — potable water, hydronic heating, and service shut-offs handled by a single forged fitting.
Features
- Forged lead-free brass body — no casting pinholes, higher tensile strength under working pressure than cast valves
- Full-port bore — matches tubing ID for unrestricted flow and no pressure drop at the fixture
- Quarter-turn lever — 90° from full-open to positive shut-off, no multi-turn gate to wear or seize
- Blow-out-proof stem with dual EPDM O-rings — keeps the handle stem leak-free through years of cycling
- ASTM F1807 crimp barbs — seal to PEX-A, PEX-B, and PEX-C with copper rings or stainless pinch clamps
- Vinyl-gripped handle — reads open or closed at a glance, comfortable to throw by hand
- Single or 10-pack — one valve for the service call, a contractor box for the rough-in
Specifications
- Valve Type: Full-Port Ball Valve (Non-Drain)
- Connection: PEX barb × PEX barb
- Standard: ASTM F1807 (crimp)
- Material: Lead-Free Forged Brass (DZR)
- Ball: Chrome-Plated Brass
- Stem: Blow-Out-Proof, Dual EPDM O-Ring Packing
- Handle: Quarter-Turn Lever, Vinyl Grip
- Size: 3/4″ PEX × 3/4″ PEX
- Pressure Rating: 400 WOG / 150 psi working
- Tubing Compatibility: PEX-A, PEX-B, PEX-C
- Applications: Potable water, hydronic heating, service shut-off
- Pack Options: Single or 10-pack
- Certifications: cUPC, NSF/ANSI 61, NSF 372
- Country of Origin: China
- Warranty: 5-Year Limited
