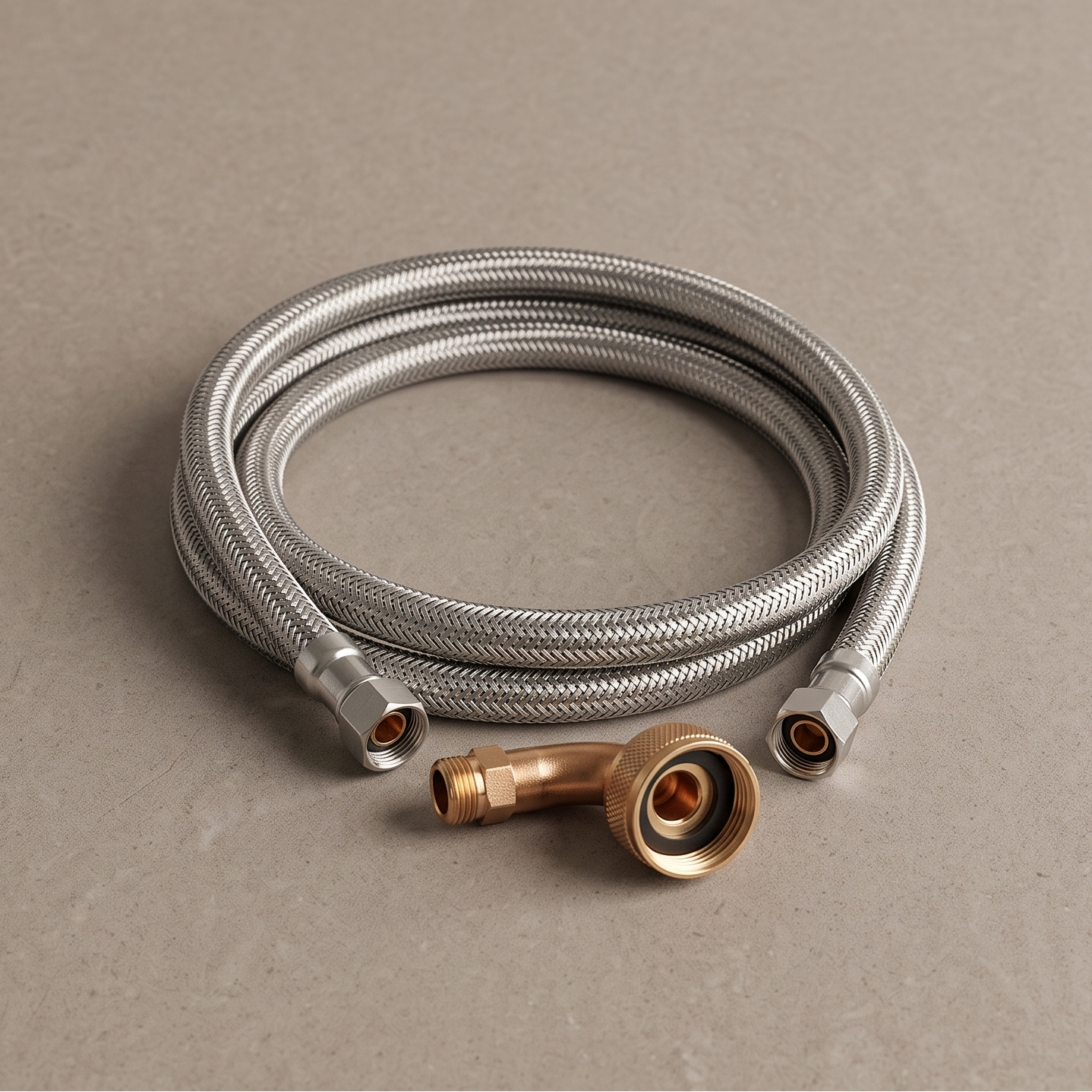

72″ Dishwasher Connector with Elbow — 3/8″ Comp × 3/4″ FGH, Braided Stainless
72″ Dishwasher Connector with Elbow — 3/8″ Comp × 3/4″ FGH, Braided Stainless
Actual product specifications and colors may differ from the images displayed.
Couldn't load pickup availability
Pickup available at GD KennedyUsually ready in 2 hours
View store information
Pre-bent elbow. No kink behind the machine.
The tightest spot in a dishwasher install is the elbow behind the machine, where a straight hose wants to kink against the cabinet and choke the supply. This connector solves that end for you: a pre-formed 90° elbow at the 3/4″ FGH outlet feeds the dishwasher's inlet valve cleanly, no fighting the hose into a curve in a four-inch gap. The other end is a 3/8″ compression nut for the supply stop under the sink, and the full 72-inch length reaches from that stop, across the cabinet run, to a machine set back in its bay. Inside is a PVC core; outside, a 304 stainless braid that contains the line if the core ever swells, so it seeps instead of flooding the kitchen floor. Both ends seal on EPDM gaskets and thread up by hand plus a wrench snug. It's the length and the elbow a dishwasher swap actually needs, in one hose.
Features
- Pre-formed 90° elbow at the outlet — feeds the dishwasher inlet cleanly in a tight cabinet gap, no kinking
- 3/4″ FGH (garden-hose thread) outlet — the standard dishwasher inlet-valve connection
- 3/8″ compression inlet — connects to the supply stop under the sink with a nut and ferrule
- 72-inch length — reaches from an under-sink stop across the cabinet to a set-back machine
- 304 stainless braid over a PVC core — contains the line if the core swells, so it seeps rather than bursts
- EPDM gaskets both ends — NSF-certified for potable water; hand-tight plus a wrench snug
Specifications
- Product Type: Flexible Dishwasher Connector with Elbow
- Length: 72″ (1829 mm)
- Inlet: 3/8″ Compression
- Outlet: 3/4″ FGH (Garden Hose Thread), 90° Elbow
- Hose: PVC Core, 304 Stainless Braided Sheath
- Gaskets: EPDM (Both Ends)
- Working Pressure: 125 psi
- Temperature: 40–140°F continuous
- Certifications: cUPC, NSF/ANSI 61, NSF 372, CSA
- Country of Origin: China
- Warranty: 5-Year Limited
