1/2" Brass PEX × MPT Adapter (F1807) — Male Thread, Lead-Free
1/2" Brass PEX × MPT Adapter (F1807) — Male Thread, Lead-Free
Actual product specifications and colors may differ from the images displayed.
SKU:611711-BPMA
Couldn't load pickup availability
Pickup available at GD KennedyUsually ready in 2 hours
View store information

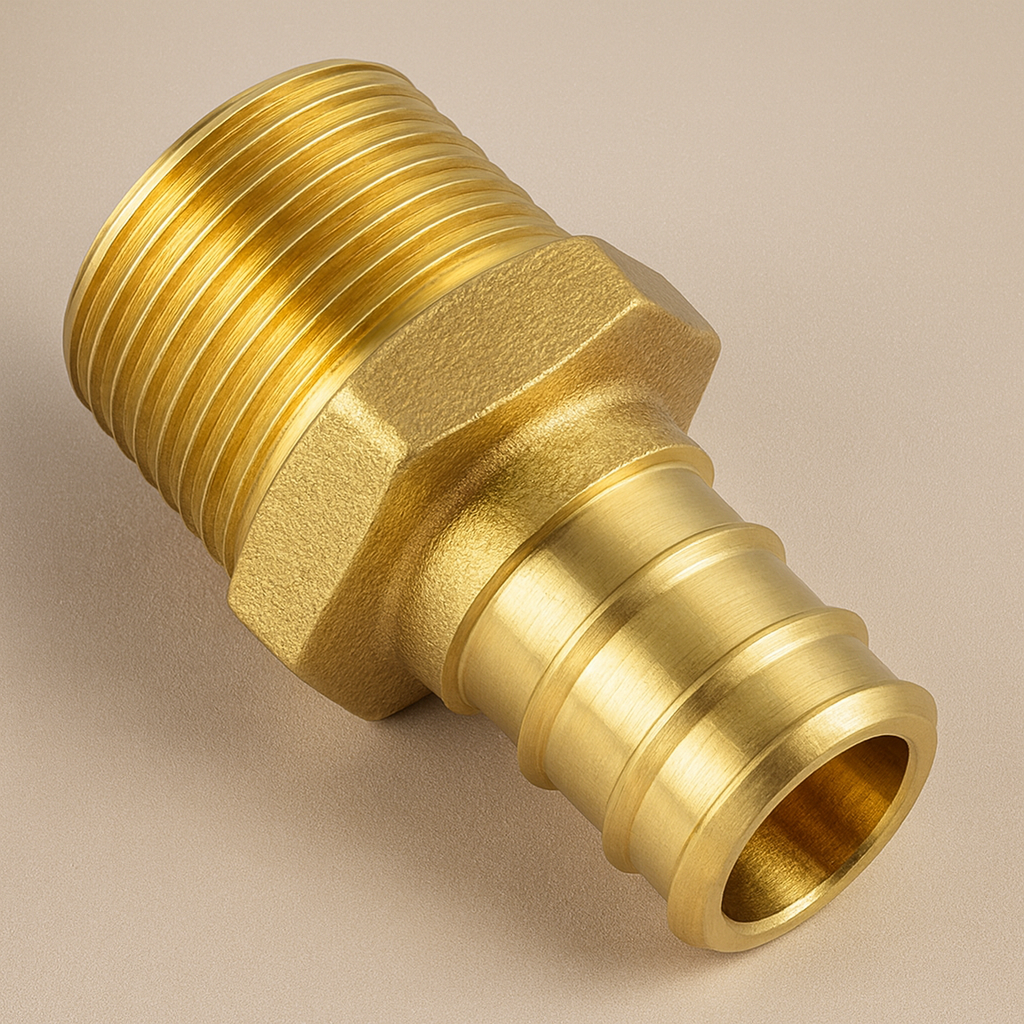

Brass PEX × MPT Adapter
The port is female and the PEX needs in — the brass PEX × MPT adapter is that fitting. On one end, a 1/2″ tapered male NPT thread that seats into shower valves, manifold ports, stop valves, and any standard FIP opening; on the other, a 1/2″ ASTM F1807 barb that crimps to the tubing with a copper ring or stainless steel pinch clamp. Machined from lead-free brass for potable hot and cold service, it needs nothing but PTFE tape and a wrench on the threaded side and the usual crimp tool on the other — no torch in the sequence, which is what makes threaded transitions the go-to near finished walls and inside cramped vanities. The straight body keeps full flow between thread and tubing, and the taper does the sealing the way NPT always has. Sold as a single for the service call or a 25-pack for the van that never wants to run out of the fitting every job seems to need.
Features
- 1/2″ tapered male NPT thread — seats into shower valves, manifolds, stops, and any standard FIP port
- 1/2″ F1807 crimp barb — seals with copper crimp rings or stainless steel pinch clamps
- No-torch transition — PTFE tape and a wrench on one side, the usual crimp tool on the other
- Lead-free forged brass — rated for potable hot and cold water and hydronic service
- Straight-through full bore — no restriction between the thread and the tubing
- Single or 25-pack — one for the service call, a contractor box for the van
Specifications
- Fitting Type: Threaded transition adapter (straight)
- Connection A: 1/2″ MPT (tapered male NPT)
- Connection B: 1/2″ PEX barb (ASTM F1807)
- Material: Lead-free forged brass
- Size: 1/2″ × 1/2″
- Pack Options: Single or 25-pack
- Thread Sealing: PTFE tape or pipe dope required
- Compatible Rings: Copper crimp rings or stainless steel pinch clamps
- Tubing Compatibility: PEX-A, PEX-B, PEX-C (SDR-9)
- Applications: Shower valves, manifolds, stop valves, threaded equipment ports
- Certifications: cUPC (lead-free compliant)
