A straight line for doors that don't want fuss.
A straight bar, a slim round rosette, and nothing extra. The Rail is a flat-bar interior door lever for spaces that lean clean and modern — the square-edged handle aligns crisply with shaker trim and slab doors, while the low-profile round rosette keeps the footprint tight against the door face. It suits a whole-floor renovation where the hardware should disappear into the design language rather than announce itself: bedrooms, hallways, closets, unit doors, all carrying the same line. Built over a hollow core in aluminum alloy and rated to ANSI Grade 2, the Vellum Hardware Rail holds up to genuine daily use without the weight that makes a latch drift over time. Choose matte black for contrast or satin nickel for a quieter read, then specify it across all four functions — keyed entry, privacy, passage, and dummy — so every door on the plan matches. Reversible handing fits left- or right-swinging doors and standard pre-drilled bores. Interior use only — not rated for exterior or wet-location doors.
Features
- Sculpted flat-bar profile
- Concealed-fastener round rosette
- Reversible handing — left or right
- Adjustable backset
- Available in Satin Nickel and Matte Black
- Four functions: Passage, Privacy, Keyed Entry, Dummy
- Lifetime mechanical warranty
- Coordinated series for floor-plan consistency
Specifications
- Style: Flat Bar (straight square-edged lever)
- Rosette Shape: Round
- Construction: Aluminum alloy, hollow-core handle
- Finishes: Satin Nickel, Matte Black
- Available Functions: Keyed Entry, Privacy, Passage, Dummy
- Keys per Keyed Lock: 3
- Handing: Reversible (left or right)
- Door Thickness: 1-3/8" to 1-3/4"
- Backset: Adjustable 2-3/8" / 2-3/4"
- Bore: 2-1/8"

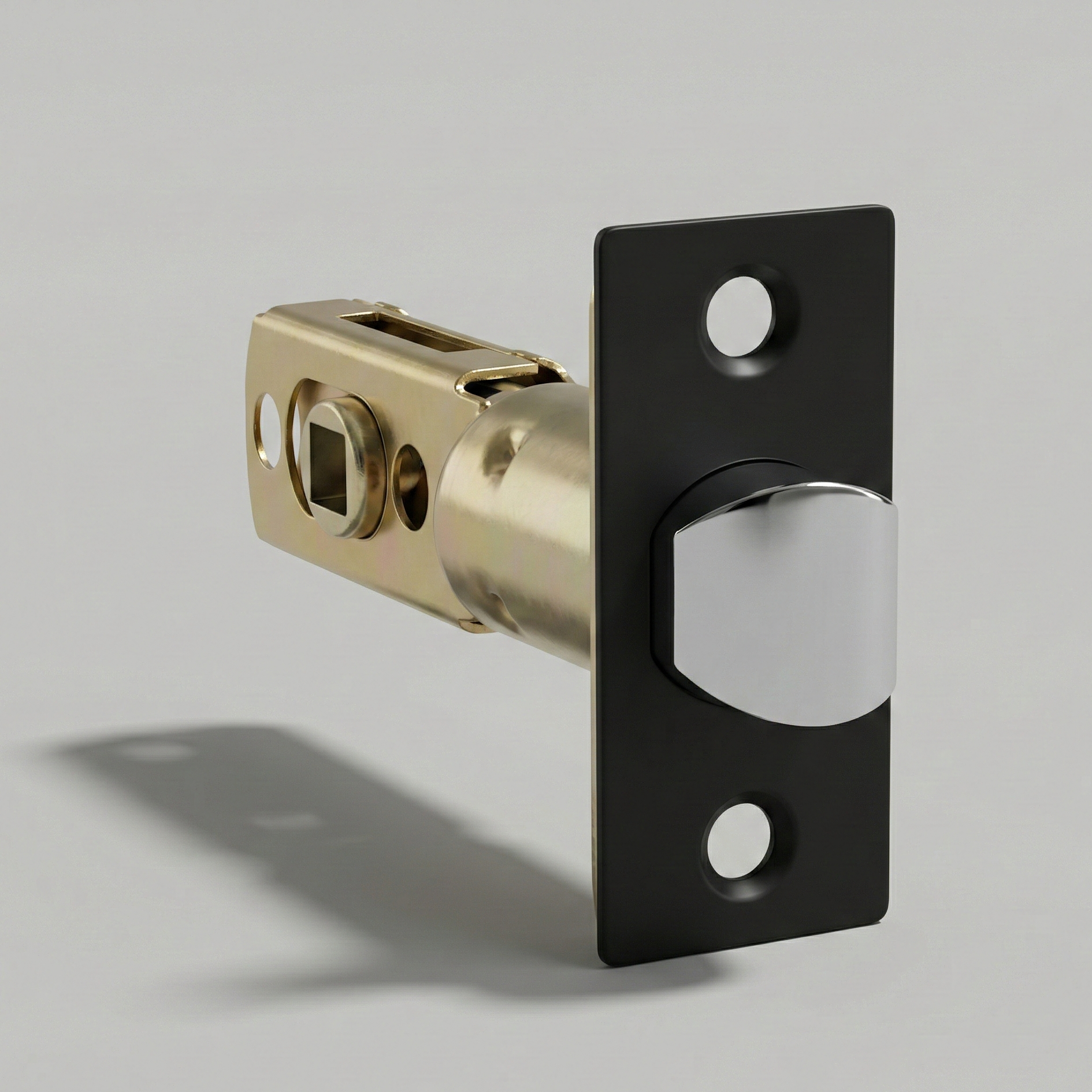

- Latch Face: 1" x 2-1/4"
- Strike Plate: 2-1/4" x 1-1/8"
- Installation: Standard bore; screws, strike plate, and template included
