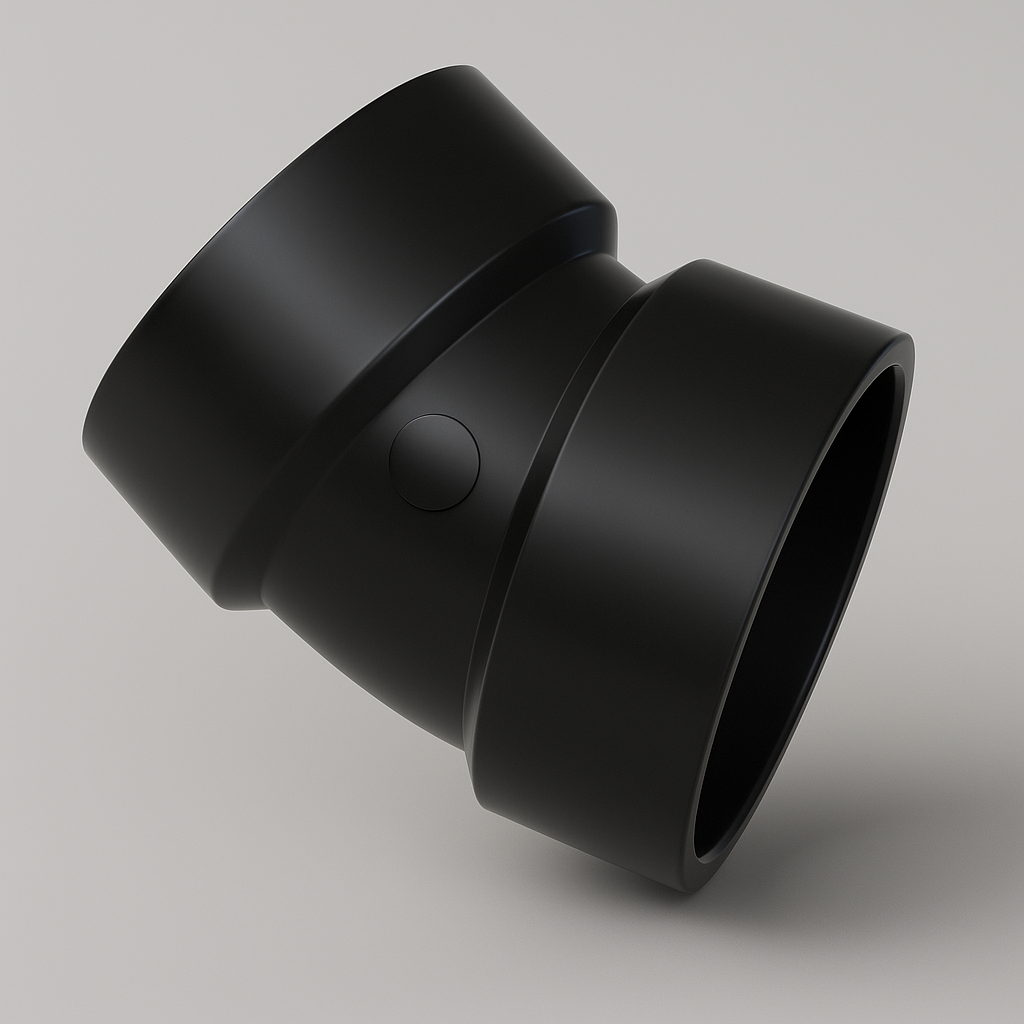

• LESSO black ABS 22.5 degree elbow, hub by hub DWV fitting
1 1

LESSO ABS 22.5° Elbow — Hub × Hub DWV, cUPC Certified

LESSO ABS 22.5° Elbow — Hub × Hub DWV, cUPC Certified

Actual product specifications and colors may differ from the images displayed.

$1.59 CAD
$1.59 CAD
Sale Sold out
Shipping calculated at checkout.
Size
Liquid error (sections/main-product line 571): Could not find asset snippets/pickup-availability.liquid
  • Local delivery available for orders over $500
  • Eligible for shipping
View full details

Gentle 22.5° Offsets, Code-Clean

ABS 22.5° elbow for the gentlest standard change of direction in an ABS DWV line — the 1/16-bend that nudges a drain or vent a few degrees off-axis to clear a joist, stud, or another line without the commitment of a 45. Both ends are hub sockets sized for Schedule 40 IPS ABS, solvent-welded for a rigid joint that holds its slight angle once the run is strapped. It meets ASTM D2661 and CSA B181.1 and carries cUPC and NSF/ANSI 14 certification, the listings an inspector checks on a residential or light-commercial rough-in across the GTA. Stocked in 1½", 2", and 3" — the sizes that handle most fine offsets in branch and stack routing. A 22.5 is a non-pressurized DWV fitting only; test the system hydrostatically, never with compressed air or gas.

Features
  • 22.5° change of direction — the 1/16-bend for fine offsets that clear a joist or stud
  • Hub × hub sockets — solvent-welds to ABS pipe on both ends for a rigid, sealed joint
  • Gentlest standard bend — the softest angle change before a straight run
  • Schedule 40 IPS sizing — pipe seats to full socket depth on both ends
  • ASTM D2661 + CSA B181.1 compliant — meets Canadian DWV code for residential and light-commercial
  • cUPC + NSF/ANSI 14 certified — the listings inspectors check on a rough-in
  • DWV service only — not for pressure; test hydrostatically, never with compressed air or gas
Specifications
  • Fitting Type: 22.5° Elbow
  • Angle: 22.5° (1/16 bend)
  • Connection: Hub × Hub
  • Material: ABS (acrylonitrile butadiene styrene)
  • System: DWV (drain, waste, vent), non-pressurized
  • Pipe Compatibility: Schedule 40 IPS ABS
  • Available Sizes: 1-1/2", 2", 3"
  • Joining Method: Solvent cement (ABS)
  • Certifications: cUPC, NSF/ANSI 14, ASTM D2661, CSA B181.1
  • Service Temperature: -40°F to 180°F (typical ABS DWV)
  • Colour: Black
Warranty Information
LESSO warrants this fitting against manufacturing defects in material and dimension. Coverage requires installation per ASTM D2661 and CSA B181.1 using ABS solvent cement. Damage from pressure service, compressed-air testing, solvent misuse, or installation outside published DWV practice is not covered.
