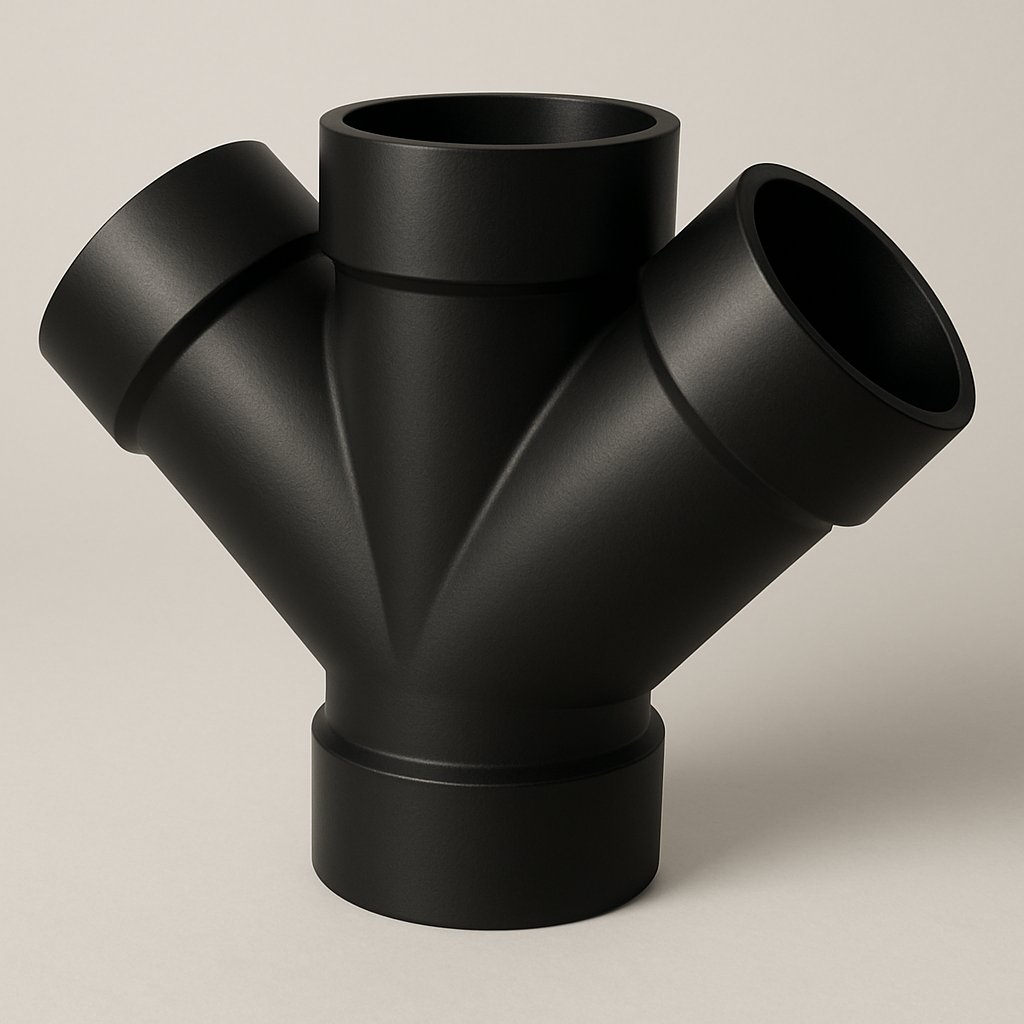

LESSO ABS 45° Double Wye — All-Hub DWV, cUPC Certified
LESSO ABS 45° Double Wye — All-Hub DWV, cUPC Certified
Actual product specifications and colors may differ from the images displayed.
Couldn't load pickup availability
Pickup available at GD KennedyUsually ready in 2 hours
View store information
-
Local delivery available for orders over $500
-
Eligible for shipping
Two Branches, One Junction
ABS 45° double wye for bringing two branches into a main on a single fitting — two Y-branches back to back, each entering at a gentle 45° so both lines drain with the flow instead of across it. All-hub sockets solvent-weld to Schedule 40 IPS ABS for a rigid, sealed junction. It meets ASTM D2661 and CSA B181.1 and carries cUPC and NSF/ANSI 14 certification, the listings an inspector checks on a residential or light-commercial rough-in across the GTA. A double wye is the clean way to tie two fixtures or branch lines into one run without stacking two separate wyes. Stocked in 1½" for paired branch work. Double wyes are non-pressurized DWV only; test hydrostatically, never with compressed air or gas.
Features
- Two 45° branch entries — ties two lines into one main on a single fitting, both with the flow
- All-hub sockets — solvent-welds to ABS pipe on every end for a rigid, sealed junction
- Saves stacking two wyes — one fitting handles a paired branch tie-in
- Schedule 40 IPS sizing — pipe seats to full socket depth on every hub
- ASTM D2661 + CSA B181.1 compliant — meets Canadian DWV code for residential and light-commercial
- cUPC + NSF/ANSI 14 certified — the listings inspectors check on a rough-in
- DWV service only — not for pressure; test hydrostatically, never with compressed air or gas
Specifications
- Fitting Type: 45° Double Wye
- Pattern: Double wye (two branches to main at 45°)
- Connection: All-Hub
- Material: ABS (acrylonitrile butadiene styrene)
- System: DWV (drain, waste, vent), non-pressurized
- Pipe Compatibility: Schedule 40 IPS ABS
- Available Sizes: 1-1/2"
- Joining Method: Solvent cement (ABS)
- Certifications: cUPC, NSF/ANSI 14, ASTM D2661, CSA B181.1
- Service Temperature: -40°F to 180°F (typical ABS DWV)
- Colour: Black
