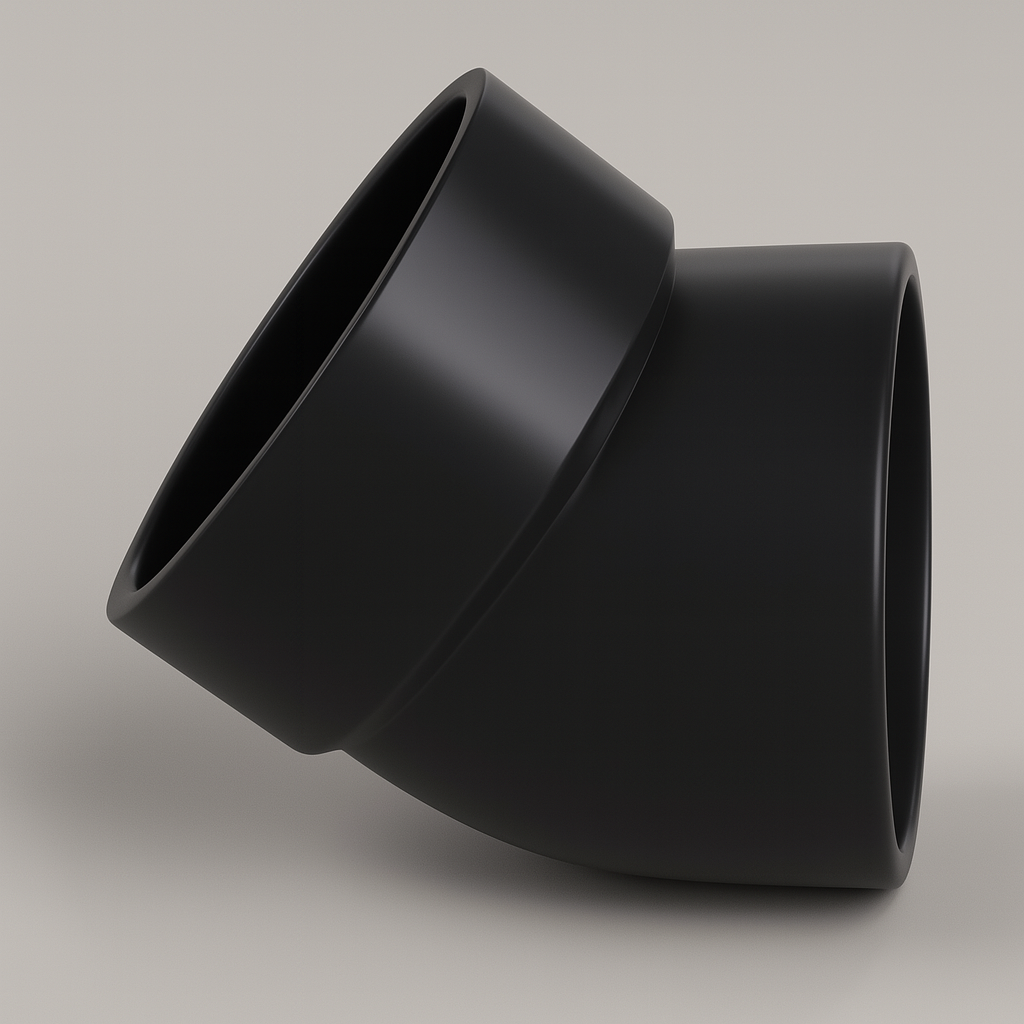

LESSO ABS 45° Street Elbow — Spigot × Hub DWV, cUPC Certified
LESSO ABS 45° Street Elbow — Spigot × Hub DWV, cUPC Certified
Actual product specifications and colors may differ from the images displayed.
Couldn't load pickup availability
Pickup available at GD KennedyUsually ready in 2 hours
View store information
-
Local delivery available for orders over $500
-
Eligible for shipping
45° Street Bend, Fewer Parts
ABS 45° street elbow for a gentle offset that ties straight into another fitting — the spigot end carries pipe outside diameter and inserts into a fitting hub, so a 1/8-bend connects directly off a trap, tee, or another elbow with no coupling between. The opposite hub accepts pipe, solvent-welded to Schedule 40 IPS ABS for a rigid joint. It meets ASTM D2661 and CSA B181.1 and carries cUPC and NSF/ANSI 14 certification, the listings an inspector checks on a residential or light-commercial DWV rough-in across the GTA. Stocked in 1½", 2", and 3" — the sizes that handle most tight offsets where parts meet directly. Street pattern is non-pressurized DWV only; test hydrostatically, never with compressed air or gas.
Features
- Street pattern (spigot × hub) — spigot inserts straight into another fitting, no coupling needed
- 45° (1/8-bend) gentle offset — softer angle change for cleaner drainage flow
- Hub end accepts pipe — solvent-welds to ABS for a rigid, sealed joint
- Schedule 40 IPS sizing — full-depth seat on both spigot and hub joints
- ASTM D2661 + CSA B181.1 compliant — meets Canadian DWV code for residential and light-commercial
- cUPC + NSF/ANSI 14 certified — the listings inspectors check on a rough-in
- DWV service only — not for pressure; test hydrostatically, never with compressed air or gas
Specifications
- Fitting Type: 45° Street Elbow
- Angle: 45° (1/8 bend)
- Connection: Spigot × Hub
- Material: ABS (acrylonitrile butadiene styrene)
- System: DWV (drain, waste, vent), non-pressurized
- Pipe Compatibility: Schedule 40 IPS ABS
- Available Sizes: 1-1/2", 2", 3"
- Joining Method: Solvent cement (ABS)
- Certifications: cUPC, NSF/ANSI 14, ASTM D2661, CSA B181.1
- Service Temperature: -40°F to 180°F (typical ABS DWV)
- Colour: Black
