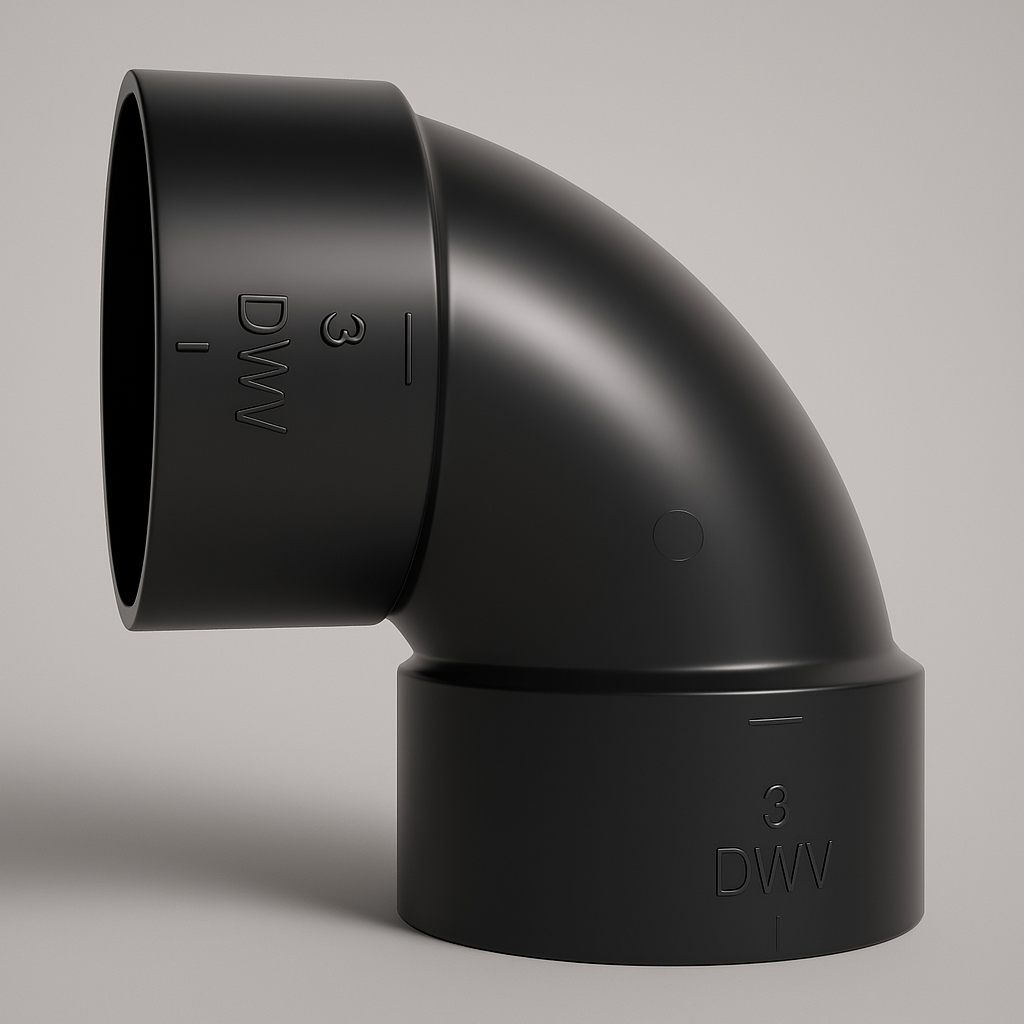

LESSO ABS 90° Elbow — Short-Turn Hub × Hub DWV, cUPC Certified
LESSO ABS 90° Elbow — Short-Turn Hub × Hub DWV, cUPC Certified
Actual product specifications and colors may differ from the images displayed.
Couldn't load pickup availability
Pickup available at GD KennedyUsually ready in 2 hours
View store information
-
Local delivery available for orders over $500
-
Eligible for shipping
Tight 90° Turns, Code-Clean
ABS 90° short-turn elbow for a tight, clean change of direction in an ABS DWV line — the fitting that turns a drain or vent the full quarter without the wide sweep of a long-turn pattern, so it fits where space is tight behind a wall or under a fixture. Both ends are hub sockets sized for Schedule 40 IPS ABS, solvent-welded for a rigid joint that holds its angle once the run is strapped. It meets ASTM D2661 and CSA B181.1 and carries cUPC and NSF/ANSI 14 certification, the listings an inspector checks on a residential or light-commercial rough-in across the GTA. Stocked in 1½", 2", and 3" — the sizes that cover most fixture drops, branch turns, and vent stacks. A short-turn 90 is a non-pressurized DWV fitting only; test the system hydrostatically, never with compressed air or gas.
Features
- 90° short-turn pattern — full quarter-turn in a compact radius for tight wall and fixture spaces
- Hub × hub sockets — solvent-welds to ABS pipe on both ends for a rigid, sealed joint
- Schedule 40 IPS sizing — pipe seats to full socket depth and holds its angle
- ASTM D2661 + CSA B181.1 compliant — meets Canadian DWV code for residential and light-commercial
- cUPC + NSF/ANSI 14 certified — the listings inspectors check on a rough-in
- Three stocked sizes — 1½", 2", and 3" for fixture drops, branch turns, and vent stacks
- DWV service only — not for pressure; test hydrostatically, never with compressed air or gas
Specifications
- Fitting Type: 90° Elbow (Short Turn)
- Angle: 90° (quarter bend)
- Connection: Hub × Hub
- Material: ABS (acrylonitrile butadiene styrene)
- System: DWV (drain, waste, vent), non-pressurized
- Pipe Compatibility: Schedule 40 IPS ABS
- Available Sizes: 1-1/2", 2", 3"
- Joining Method: Solvent cement (ABS)
- Certifications: cUPC, NSF/ANSI 14, ASTM D2661, CSA B181.1
- Service Temperature: -40°F to 180°F (typical ABS DWV)
- Colour: Black
