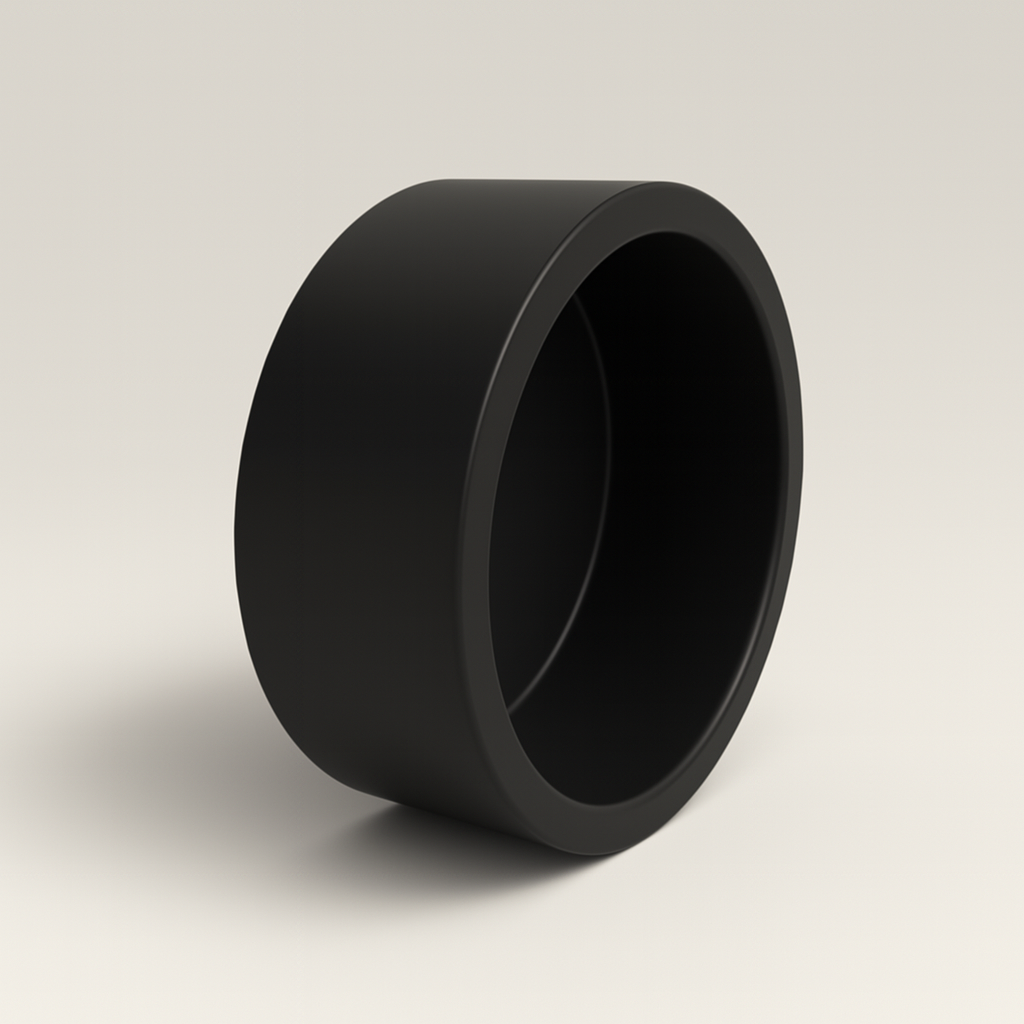

LESSO ABS Cap — Hub DWV Pipe End Closure, cUPC Certified
LESSO ABS Cap — Hub DWV Pipe End Closure, cUPC Certified
Actual product specifications and colors may differ from the images displayed.
Couldn't load pickup availability
Pickup available at GD KennedyUsually ready in 2 hours
View store information
-
Local delivery available for orders over $500
-
Eligible for shipping
Seal the Run, Code-Clean
ABS cap for sealing the end of an ABS DWV run — the hub socket slides over the pipe end and solvent-welds to a permanent, watertight closure, the clean way to terminate a stubbed-out line or close off a future connection point. Unlike a threaded plug that screws into a fitting, this cap fits over pipe, so it's what you reach for to cap a length of pipe itself. It's a LESSO America ABS DWV fitting conforming to ASTM D2661 and CSA B181.1 with NSF/ANSI 14 and cUPC listings — the marks an inspector checks on a residential or light-commercial rough-in across the GTA. Stocked in 1½", 2", and 3" for the common stub and termination sizes. DWV service only; test hydrostatically, never with compressed air or gas.
Features
- Hub socket — fits over the pipe end and solvent-welds to a permanent, watertight seal
- Caps pipe, not fittings — closes off a stubbed-out line or a future connection point
- Schedule 40 IPS sizing — seats to full socket depth on the pipe end
- LESSO America ABS DWV — conforms to ASTM D2661 and CSA B181.1
- cUPC + NSF/ANSI 14 listed — the marks inspectors check on a rough-in
- Three stocked sizes — 1½", 2", and 3" for common stubs and terminations
- DWV service only — not for pressure; test hydrostatically, never with compressed air or gas
Specifications
- Fitting Type: Cap
- Connection: Hub (fits over pipe end)
- Material: ABS (acrylonitrile butadiene styrene)
- System: DWV (drain, waste, vent), non-pressurized
- Pipe Compatibility: Schedule 40 IPS ABS
- Available Sizes: 1-1/2", 2", 3"
- Joining Method: Solvent cement (ABS)
- Certifications: cUPC, NSF/ANSI 14, ASTM D2661, CSA B181.1
- Service Temperature: -40°F to 180°F (typical ABS DWV)
- Colour: Black
