Threaded Transition, Code-Clean

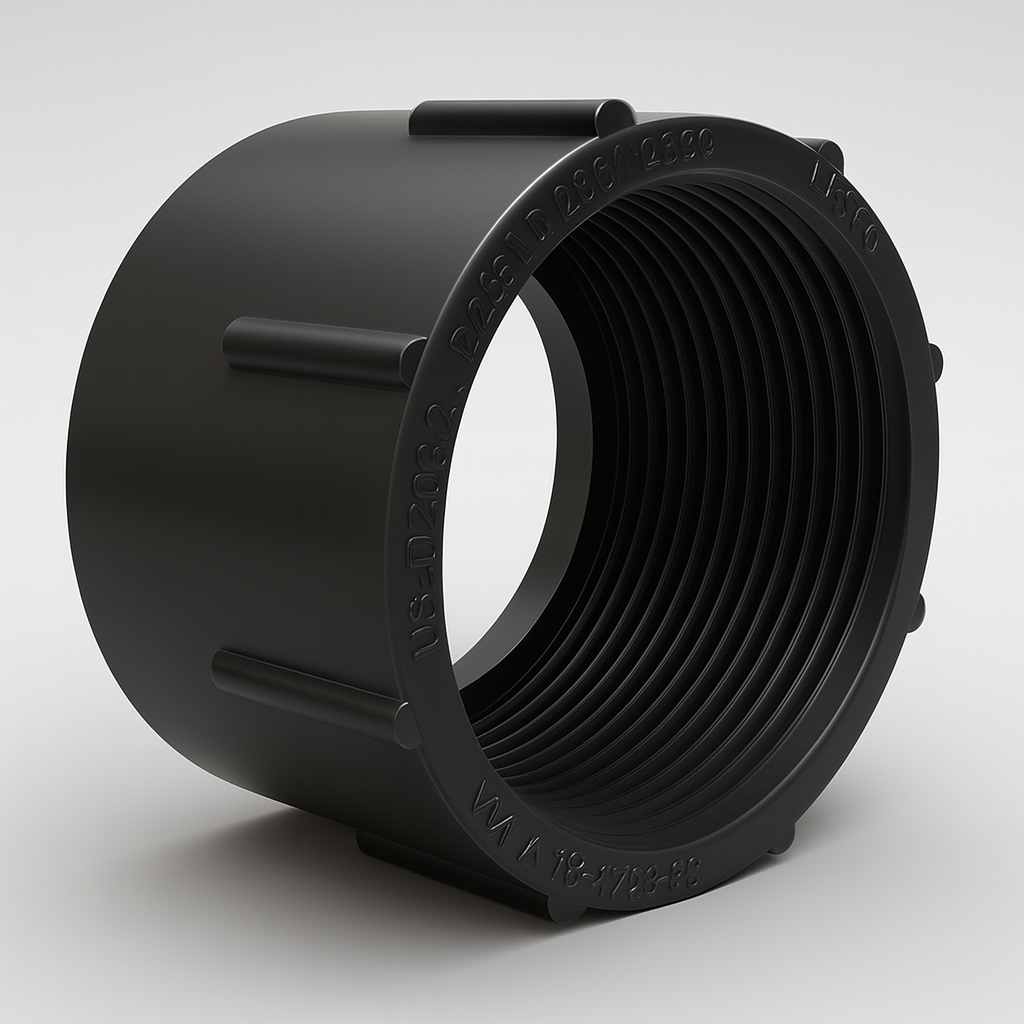

ABS female adapter for making a threaded transition off an ABS DWV line — the hub end solvent-welds to Schedule 40 IPS ABS, and the FIPT (female NPT) end accepts a matching male pipe thread, so you can tie into a threaded trap arm, cleanout, or appliance fitting without leaving solvent-weld ABS. It's the simple hub-to-thread step used wherever a run has to meet a threaded component. It's a LESSO America ABS DWV fitting conforming to ASTM D2661 and CSA B181.1 with NSF/ANSI 14 and cUPC listings — the marks an inspector checks on a residential or light-commercial rough-in across the GTA. Stocked in 1½" for standard drain and vent transitions. DWV service only; test hydrostatically, never with compressed air or gas.
Features
- Hub × FIPT — solvent-weld hub on one end, female NPT thread on the other for a clean hub-to-thread step
- Threaded outlet — accepts a male pipe thread for trap arms, cleanouts, or appliance tie-ins
- Schedule 40 IPS sizing — hub seats pipe to full socket depth
- LESSO America ABS DWV — conforms to ASTM D2661 and CSA B181.1
- cUPC + NSF/ANSI 14 listed — the marks inspectors check on a rough-in
- DWV service only — not for pressure; test hydrostatically, never with compressed air or gas
- Not a slip-joint — this is a threaded FIPT adapter; for a tubular tailpiece connection use a slip-joint trap adapter
Specifications
- Fitting Type: Female Adapter
- Connection: Hub × FIPT (female NPT)
- Material: ABS (acrylonitrile butadiene styrene)
- System: DWV (drain, waste, vent), non-pressurized
- Pipe Compatibility: Schedule 40 IPS ABS
- Size: 1-1/2"
- Joining Method: Solvent cement (ABS) on hub; threaded on FIPT
- Certifications: cUPC, NSF/ANSI 14, ASTM D2661, CSA B181.1
- Service Temperature: -40°F to 180°F (typical ABS DWV)
- Colour: Black
