Rough-In to Finish, Sealed

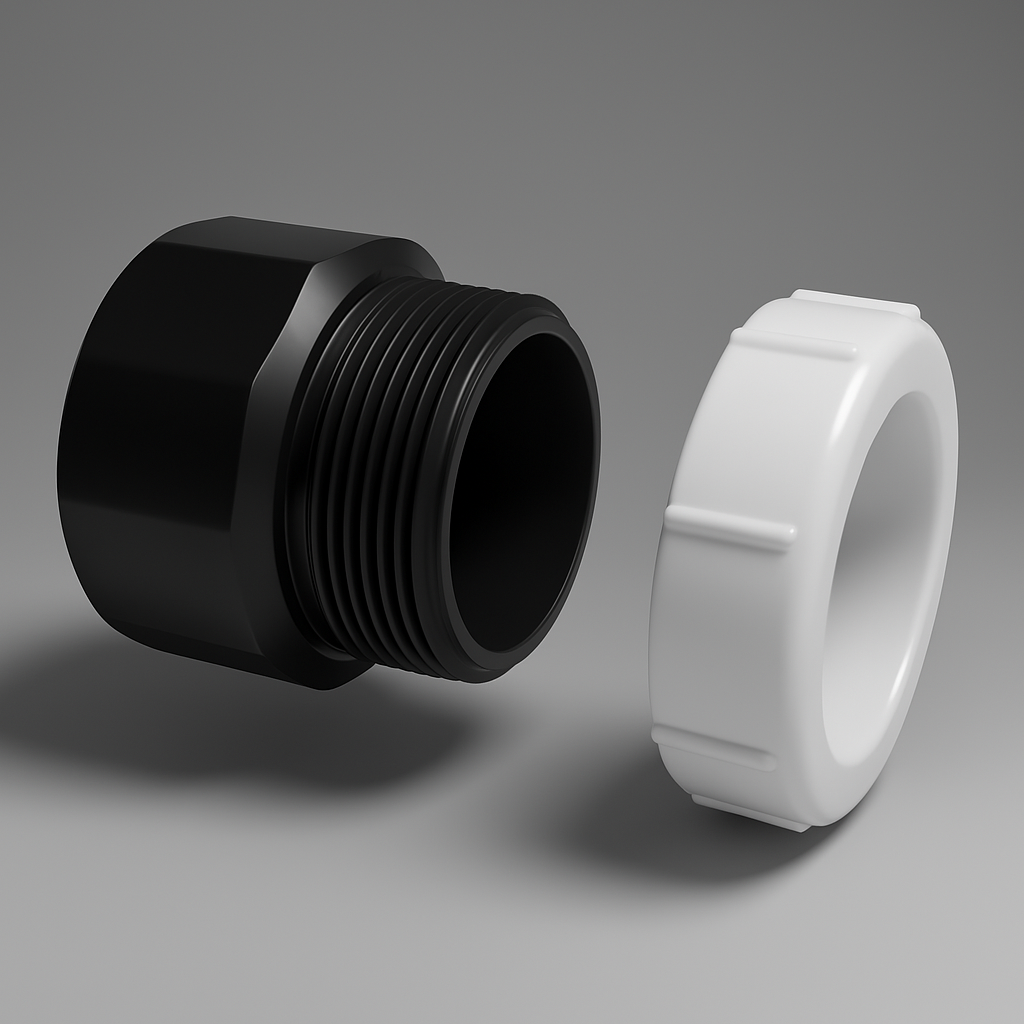

ABS trap adapter that takes a drain run from rough-in to finish under a sink — the hub solvent-welds to the 1½" ABS wall stub, and the threaded spigot accepts the included plastic slip nut and washer to seal onto a P-trap or tailpiece. That slip-joint outlet is the connection that lets you tighten by hand onto a chrome, PVC, or brass tubular tailpiece and break it apart again for service without tools or cement. It's the standard way to land a finished trap onto an ABS rough-in. A LESSO America ABS DWV fitting conforming to ASTM D2661 and CSA B181.1 with NSF/ANSI 14 and cUPC listings. Stocked in 1½" and a 1½"×1¼" reducing size for lavatory tailpieces. DWV service only; test hydrostatically, never with compressed air or gas.
Features
- Hub × slip-joint — solvent-weld hub to the ABS wall stub, slip-joint outlet seals to a P-trap tailpiece
- Includes nut and washer — plastic slip nut and washer ship with the fitting for a hand-tight watertight seal
- Serviceable — loosen the slip nut to remove or realign the trap without tools or cement
- Seals to chrome, PVC, or brass tubular tailpieces — the standard rough-in-to-finish transition under a sink
- Schedule 40 IPS sizing — hub seats pipe to full socket depth
- LESSO America ABS DWV — conforms to ASTM D2661 and CSA B181.1, cUPC + NSF/ANSI 14 listed
- Two sizes — 1½" and 1½"×1¼" for standard and reduced lavatory tailpieces
Specifications
- Fitting Type: Trap Adapter (Slip-Joint)
- Connection: Hub × Slip-Joint (with nut and washer)
- Material: ABS (acrylonitrile butadiene styrene)
- System: DWV (drain, waste, vent), non-pressurized
- Pipe Compatibility: Schedule 40 IPS ABS
- Available Sizes: 1-1/2", 1-1/2" x 1-1/4"
- Nut Included: Yes (plastic slip nut and washer)
- Joining Method: Solvent cement (ABS) on hub; slip-joint on outlet
- Certifications: cUPC, NSF/ANSI 14, ASTM D2661, CSA B181.1
- Service Temperature: -40°F to 180°F (typical ABS DWV)
- Colour: Black
