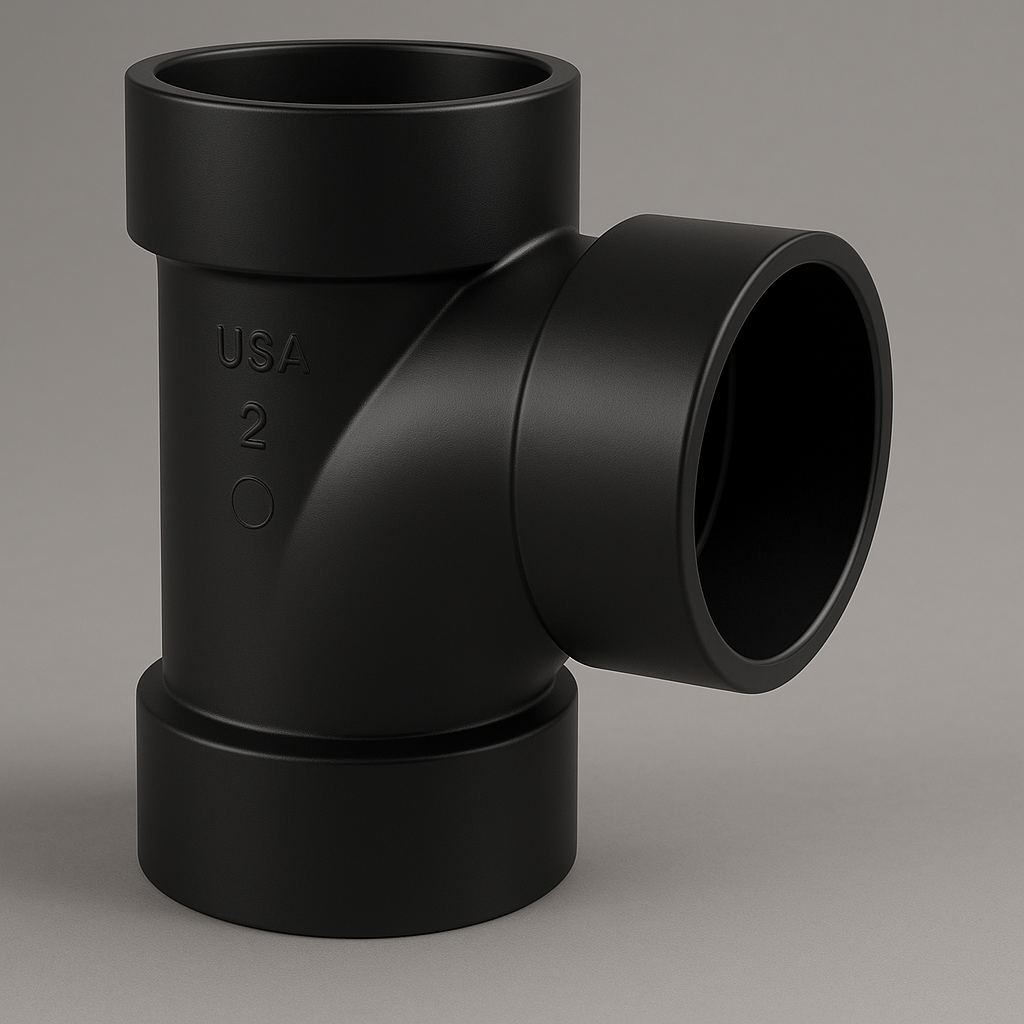

LESSO ABS Sanitary Tee — Hub × Hub × Hub DWV, cUPC Certified
LESSO ABS Sanitary Tee — Hub × Hub × Hub DWV, cUPC Certified
Actual product specifications and colors may differ from the images displayed.
Couldn't load pickup availability
Pickup available at GD KennedyUsually ready in 2 hours
View store information
-
Local delivery available for orders over $500
-
Eligible for shipping
Clean Branch, Sanitary Flow
ABS sanitary tee for tying a horizontal fixture branch into a vertical drain or vent stack — the workhorse junction behind a sink, tub, or lavatory where a branch line meets the stack. The branch inlet enters with a curved sanitary sweep that turns flow downward into the stack, so waste keeps moving and solids don't catch at the joint the way they would on a square vent-tee inlet. All three ends are hub sockets sized for Schedule 40 IPS ABS, solvent-welded for a rigid, sealed joint. It meets ASTM D2661 and CSA B181.1 and carries cUPC and NSF/ANSI 14 certification, the listings an inspector checks on a residential or light-commercial rough-in across the GTA. Stocked in 1½" and 2" — the sizes that cover most fixture and branch tie-ins. Sanitary tees are non-pressurized DWV only; test hydrostatically, never with compressed air or gas.
Features
- Sanitary sweep inlet — curved branch entry turns flow downward into the stack so waste keeps moving
- Hub × hub × hub sockets — solvent-welds to ABS pipe on all three ends for a rigid, sealed joint
- Drains while it vents — the standard junction for tying a fixture branch into a DWV stack
- Schedule 40 IPS sizing — pipe seats to full socket depth on every hub
- ASTM D2661 + CSA B181.1 compliant — meets Canadian DWV code for residential and light-commercial
- cUPC + NSF/ANSI 14 certified — the listings inspectors check on a rough-in
- DWV service only — not for pressure; test hydrostatically, never with compressed air or gas
Specifications
- Fitting Type: Sanitary Tee
- Pattern: Sanitary sweep (branch to stack)
- Connection: Hub × Hub × Hub
- Material: ABS (acrylonitrile butadiene styrene)
- System: DWV (drain, waste, vent), non-pressurized
- Pipe Compatibility: Schedule 40 IPS ABS
- Available Sizes: 1-1/2", 2"
- Joining Method: Solvent cement (ABS)
- Certifications: cUPC, NSF/ANSI 14, ASTM D2661, CSA B181.1
- Service Temperature: -40°F to 180°F (typical ABS DWV)
- Colour: Black
