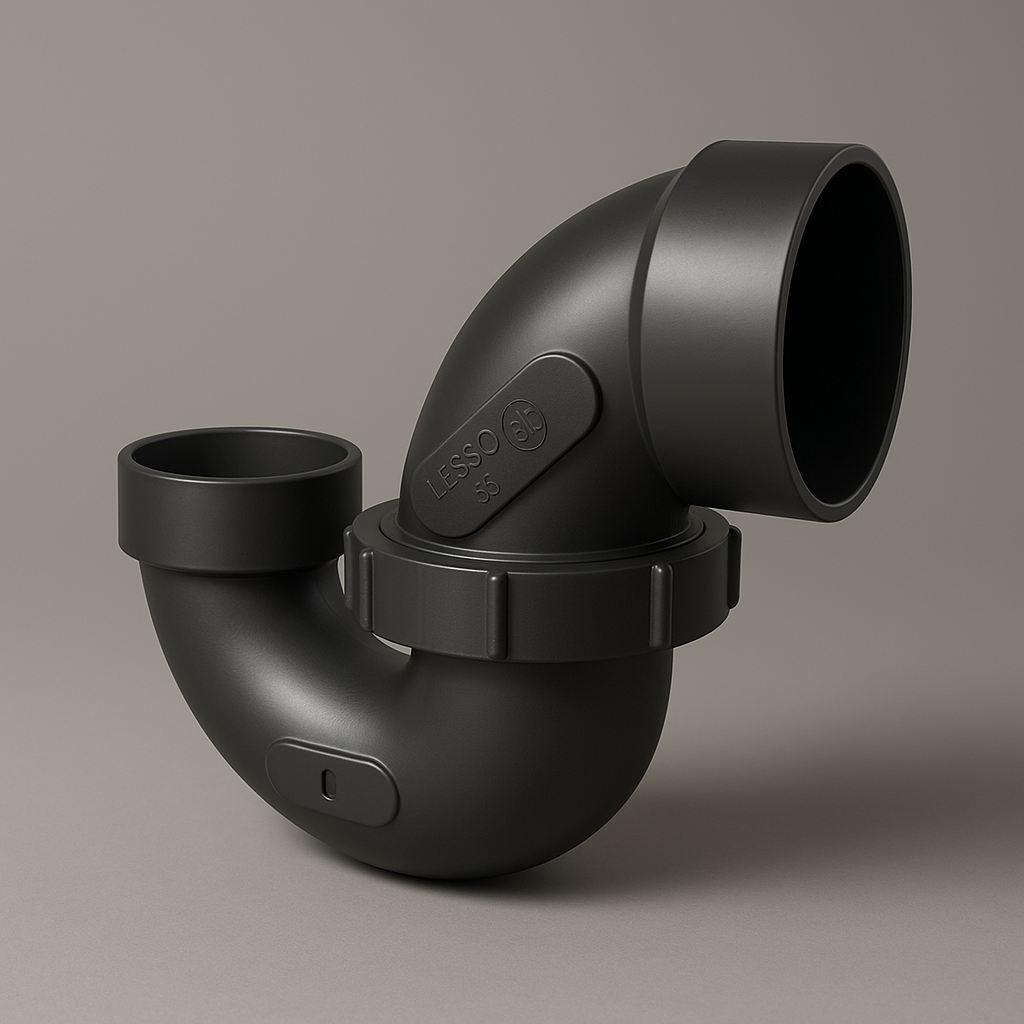

LESSO ABS P-Trap with Union — 1½" Hub × Hub DWV, cUPC Certified
LESSO ABS P-Trap with Union — 1½" Hub × Hub DWV, cUPC Certified
Actual product specifications and colors may differ from the images displayed.
Couldn't load pickup availability
Pickup available at GD KennedyUsually ready in 2 hours
View store information
-
Local delivery available for orders over $500
-
Eligible for shipping
Opens to Service, Seals to Code
ABS P-trap with a swivel union for the under-sink drain that needs to come apart cleanly for service — loosen the union nut and the trap separates so you can clear a blockage or pull the trap entirely, then re-seat and re-seal without cutting pipe. The U-bend holds a water seal that blocks sewer gas from rising through the fixture. Both ends are hub sockets sized for Schedule 40 IPS ABS, solvent-welded for a rigid joint, while the union keeps the assembly serviceable. It's a LESSO America ABS DWV fitting conforming to ASTM D2661 and CSA B181.1 with NSF/ANSI 14 and cUPC listings — the marks an inspector checks on a residential or light-commercial rough-in across the GTA. Stocked in 1½" for standard sink and lavatory drains. DWV service only; test hydrostatically, never with compressed air or gas.
Features
- Swivel union — loosen the nut to open or remove the trap for service, then re-seal, no pipe-cutting
- Sewer-gas seal — the U-bend holds a water plug that blocks odours from rising through the fixture
- Hub × hub sockets — solvent-welds to Schedule 40 IPS ABS for a rigid joint
- Serviceable without a cleanout — the union does the job a bottom plug would, by opening the whole trap
- LESSO America ABS DWV — conforms to ASTM D2661 and CSA B181.1
- cUPC + NSF/ANSI 14 listed — the marks inspectors check on a rough-in
- DWV service only — not for pressure; test hydrostatically, never with compressed air or gas
Specifications
- Fitting Type: P-Trap with Union
- Configuration: U-bend with swivel union (no cleanout plug)
- Connection: Hub × Hub
- Material: ABS (acrylonitrile butadiene styrene)
- System: DWV (drain, waste, vent), non-pressurized
- Pipe Compatibility: Schedule 40 IPS ABS
- Size: 1-1/2"
- Joining Method: Solvent cement (ABS)
- Certifications: cUPC, NSF/ANSI 14, ASTM D2661, CSA B181.1
- Service Temperature: -40°F to 180°F (typical ABS DWV)
- Colour: Black
