Smooth 45° Offsets, Solvent-Welded

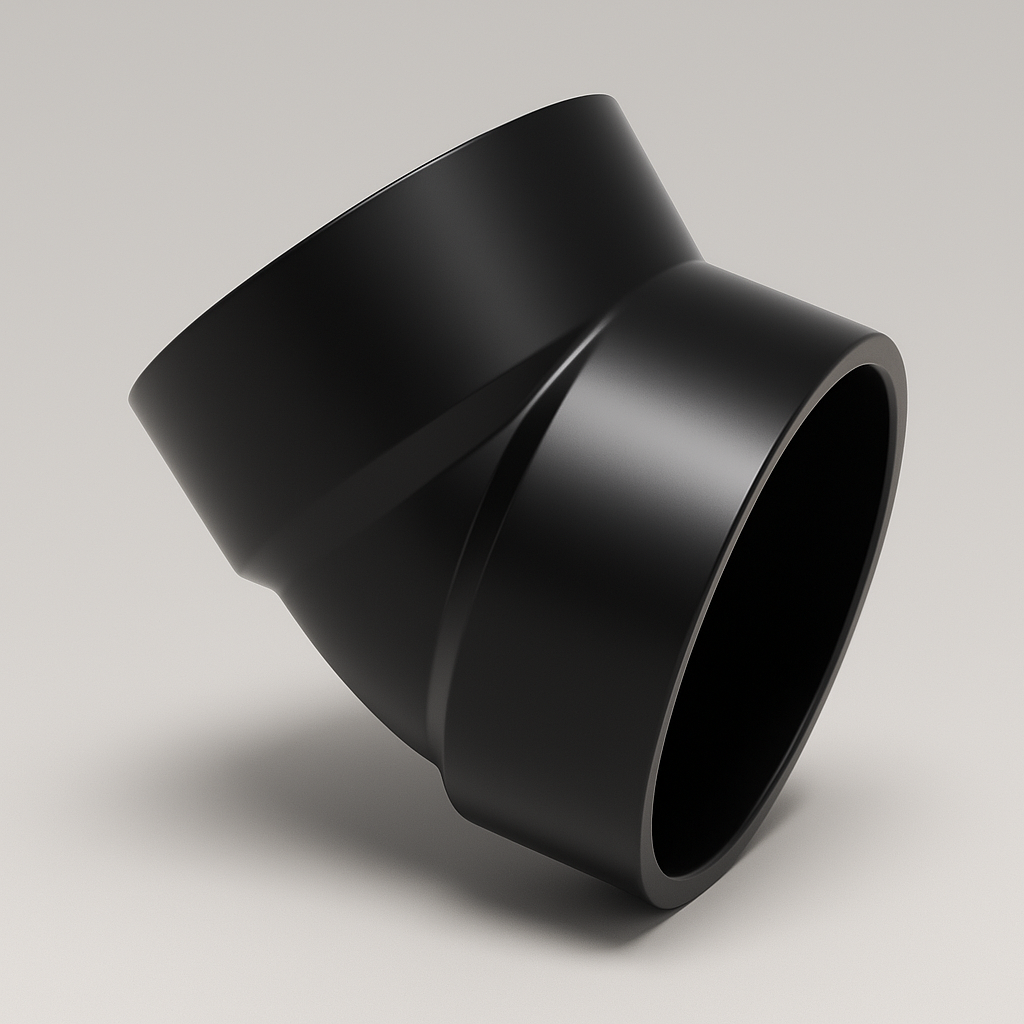

ABS 45° elbow for a gentle change of direction in an ABS DWV line — the half-quarter bend (a 1/8-bend in trade shorthand) that eases a drain or vent around an obstacle without the abrupt turn of a 90. Both ends are hub sockets sized for Schedule 40 IPS ABS, solvent-welded for a rigid joint that keeps flow moving on the drainage side. It meets ASTM D2661 and CSA B181.1 and carries cUPC and NSF/ANSI 14 certification, the listings an inspector checks on a residential or light-commercial rough-in across the GTA. Stocked in 1½", 2", and 3" — the sizes that handle most offsets and angle changes in branch and stack work. A 45 is a non-pressurized DWV fitting only; test the system hydrostatically, never with compressed air or gas.
Features
- 45° change of direction — the 1/8-bend that eases offsets without an abrupt 90° turn
- Hub × hub sockets — solvent-welds to ABS pipe on both ends for a rigid, sealed joint
- Gentler angle keeps flow moving — preferred on the drainage side of a run
- Schedule 40 IPS sizing — pipe seats to full socket depth on both ends
- ASTM D2661 + CSA B181.1 compliant — meets Canadian DWV code for residential and light-commercial
- cUPC + NSF/ANSI 14 certified — the listings inspectors check on a rough-in
- DWV service only — not for pressure; test hydrostatically, never with compressed air or gas
Specifications
- Fitting Type: 45° Elbow
- Angle: 45° (1/8 bend)
- Connection: Hub × Hub
- Material: ABS (acrylonitrile butadiene styrene)
- System: DWV (drain, waste, vent), non-pressurized
- Pipe Compatibility: Schedule 40 IPS ABS
- Available Sizes: 1-1/2", 2", 3"
- Joining Method: Solvent cement (ABS)
- Certifications: cUPC, NSF/ANSI 14, ASTM D2661, CSA B181.1
- Service Temperature: -40°F to 180°F (typical ABS DWV)
- Colour: Black
