Step Down, Stay Code-Clean

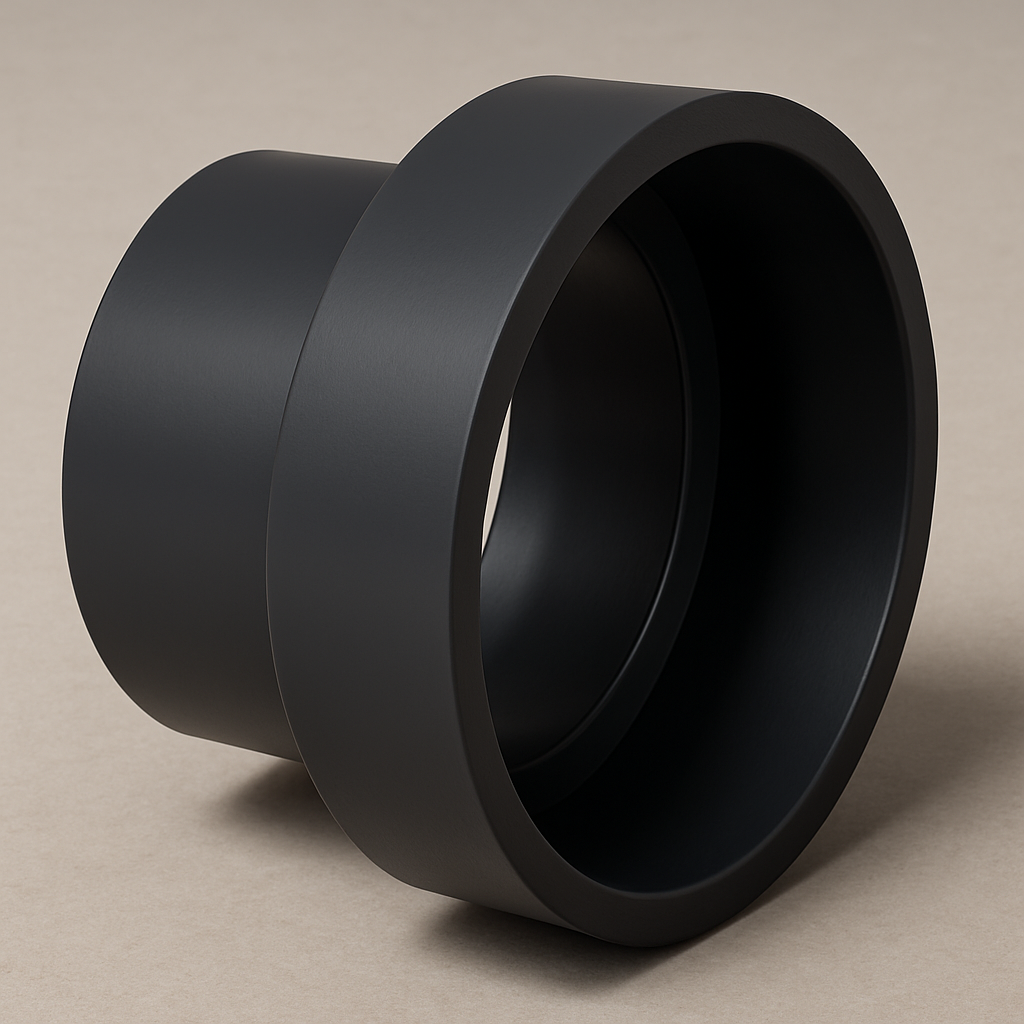

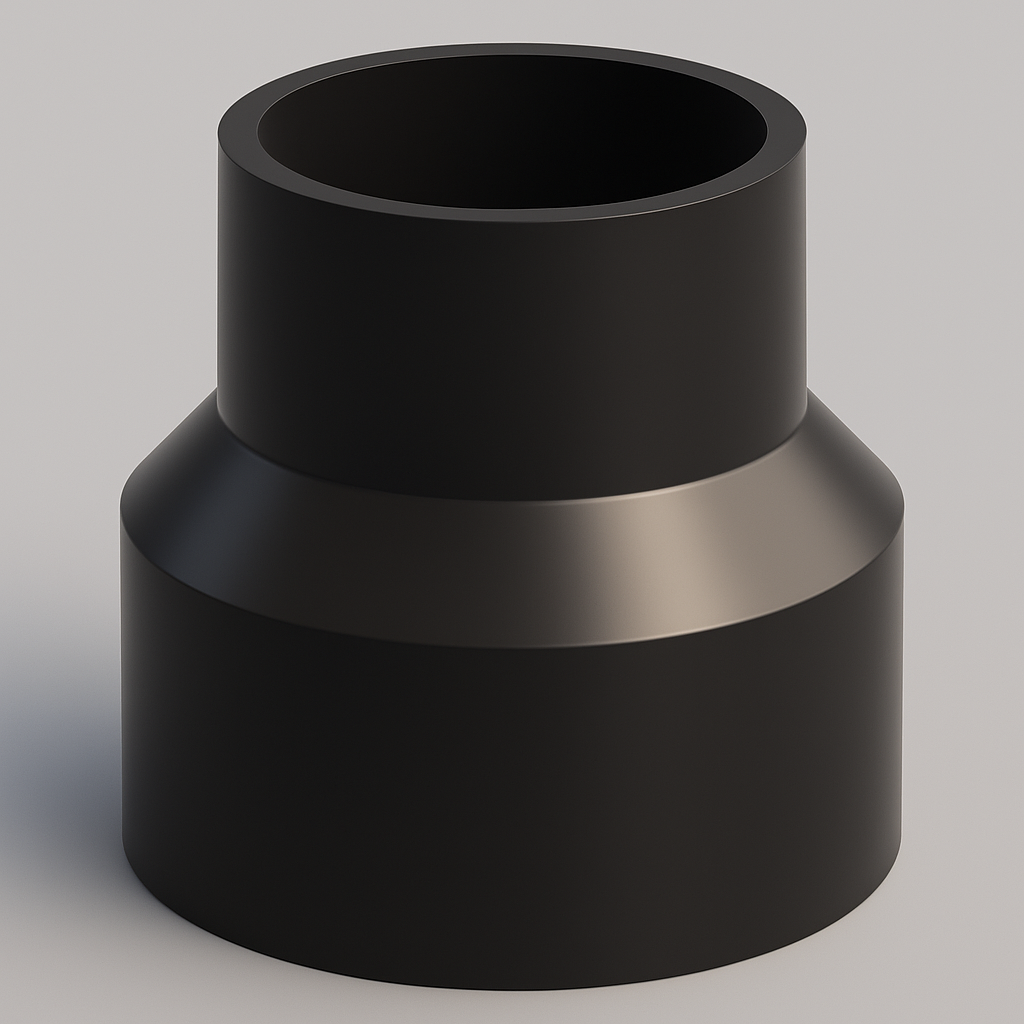

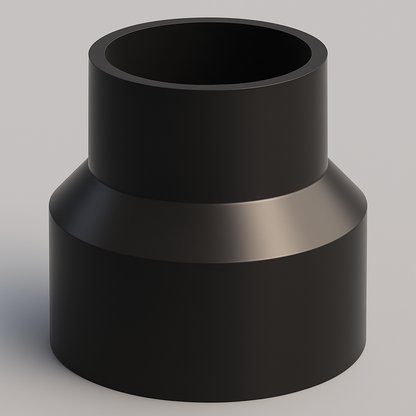

ABS reducing coupling for joining two different-size ABS DWV pipes in one solvent-welded step — the fitting that steps a 3-inch stack down to a 2-inch branch, or a 2-inch line into 1½-inch, without stacking adapters. Both ends are hub sockets sized for Schedule 40 IPS ABS, so each pipe seats to full depth before the cement sets. The coupling meets ASTM D2661 and CSA B181.1 and carries cUPC certification, the listing an inspector checks on a residential or light-commercial drain, waste, and vent rough-in across the GTA. ABS keeps the fitting light on overhead work and rigid once the run is strapped. Stocked in the three reductions that cover most kitchen, bath, and stack transitions — 2×1½", 3×1½", and 3×2" — a low-cost part you reach for whenever pipe sizes change mid-run.
Features
- Hub × hub reducing sockets — joins two different-size ABS pipes in a single solvent-welded fitting
- Schedule 40 IPS sizing — each pipe seats to full socket depth on both ends
- ASTM D2661 + CSA B181.1 compliant — meets Canadian DWV code for residential and light-commercial
- cUPC certified — the listing mark inspectors check on a rough-in
- Eliminates stacked adapters — one fitting handles the size change, fewer joints to fail
- Three stocked reductions — 2×1½", 3×1½", and 3×2" cover most kitchen, bath, and stack transitions
- DWV service only — not for pressure; test hydrostatically, never with compressed air or gas
Specifications
- Fitting Type: Reducing Coupling
- Connection: Hub × Hub
- Material: ABS (acrylonitrile butadiene styrene)
- System: DWV (drain, waste, vent), non-pressurized
- Pipe Compatibility: Schedule 40 IPS ABS
- Available Sizes: 2" x 1-1/2", 3" x 1-1/2", 3" x 2"
- Joining Method: Solvent cement (ABS)
- Certifications: cUPC, ASTM D2661, CSA B181.1
- Service Temperature: -40°F to 180°F (typical ABS DWV)
- Colour: Black
