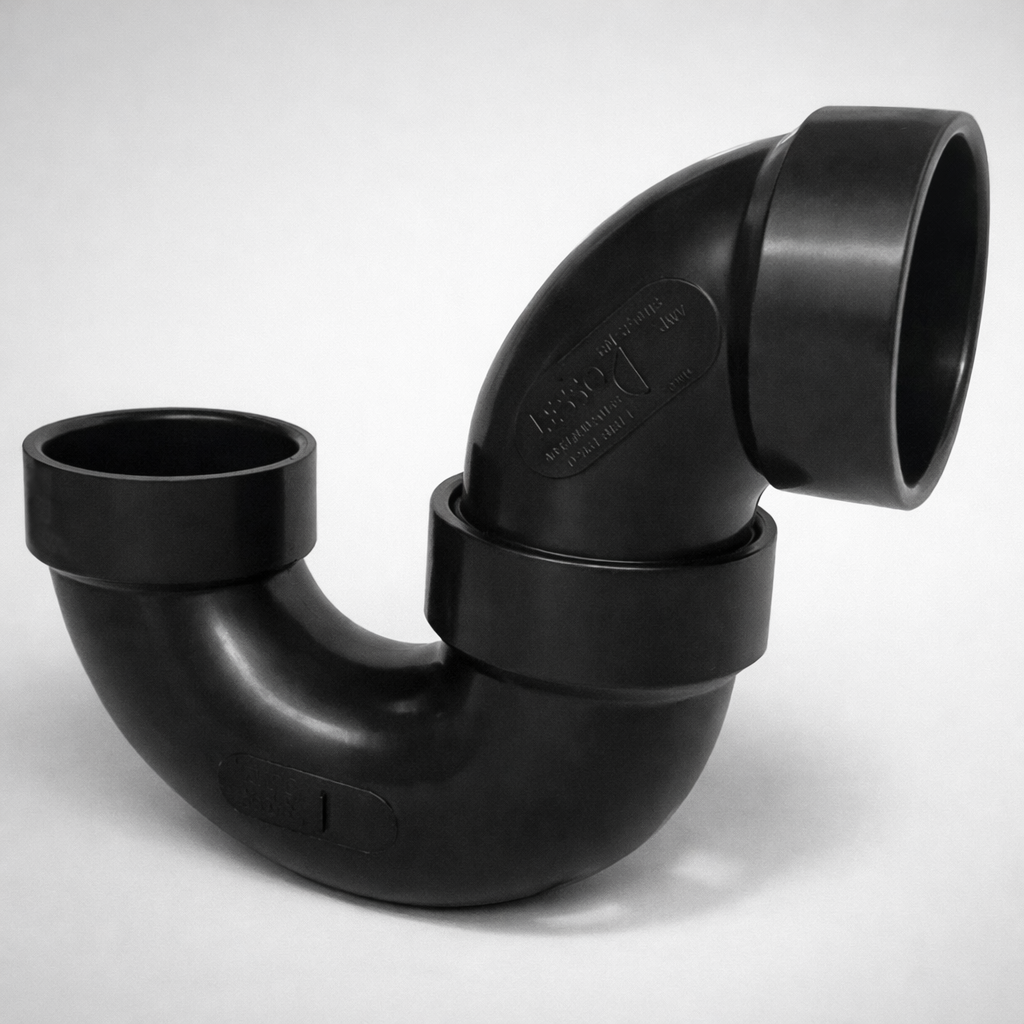

LESSO ABS P-Trap with Union, Less Cleanout — Hub × Hub DWV, cUPC Certified
LESSO ABS P-Trap with Union, Less Cleanout — Hub × Hub DWV, cUPC Certified
Actual product specifications and colors may differ from the images displayed.
Couldn't load pickup availability
Pickup available at GD KennedyUsually ready in 2 hours
View store information
-
Local delivery available for orders over $500
-
Eligible for shipping
Sealed Bottom, Built to Conceal
ABS P-trap with a swivel union and no bottom cleanout — the “less cleanout” pattern that trades the threaded plug for a sealed U-bend, removing the one joint most likely to weep on a concealed install. With no plug at the base, it's the trap to reach for behind a finished wall, under a tub deck, or anywhere a future leak would be hard to get at. The union nut still lets you break the trap open to clear a clog or recover a dropped ring without cutting pipe, and the U-bend holds a water seal against sewer gas. Both ends are hub sockets sized for Schedule 40 IPS ABS, solvent-welded for a rigid, permanent joint. It's a LESSO America ABS DWV fitting conforming to ASTM D2661 and CSA B181.1 with NSF/ANSI 14 and cUPC listings. Stocked in 1½" and 2" for sink, tub, and branch drains. DWV service only; test hydrostatically, never with compressed air or gas.
Features
- Less-cleanout design — no bottom plug means one fewer leak point, ideal for concealed and hard-to-reach installs
- Swivel union — break the trap open to clear a clog or realign without cutting pipe
- Sewer-gas seal — the U-bend holds a water plug that blocks odours from rising through the fixture
- Hub × hub sockets — solvent-welds to Schedule 40 IPS ABS for a rigid, permanent joint
- LESSO America ABS DWV — conforms to ASTM D2661 and CSA B181.1
- cUPC + NSF/ANSI 14 listed — the marks inspectors check on a rough-in
- Two stocked sizes — 1½" and 2" for sink, tub, and branch drains
Specifications
- Fitting Type: P-Trap with Union, Less Cleanout
- Configuration: U-bend with swivel union, sealed bottom (no cleanout plug)
- Connection: Hub × Hub
- Material: ABS (acrylonitrile butadiene styrene)
- System: DWV (drain, waste, vent), non-pressurized
- Pipe Compatibility: Schedule 40 IPS ABS
- Available Sizes: 1-1/2", 2"
- Joining Method: Solvent cement (ABS)
- Certifications: cUPC, NSF/ANSI 14, ASTM D2661, CSA B181.1
- Service Temperature: -40°F to 180°F (typical ABS DWV)
- Colour: Black
