Code-Required Safety, Ten to a Box.

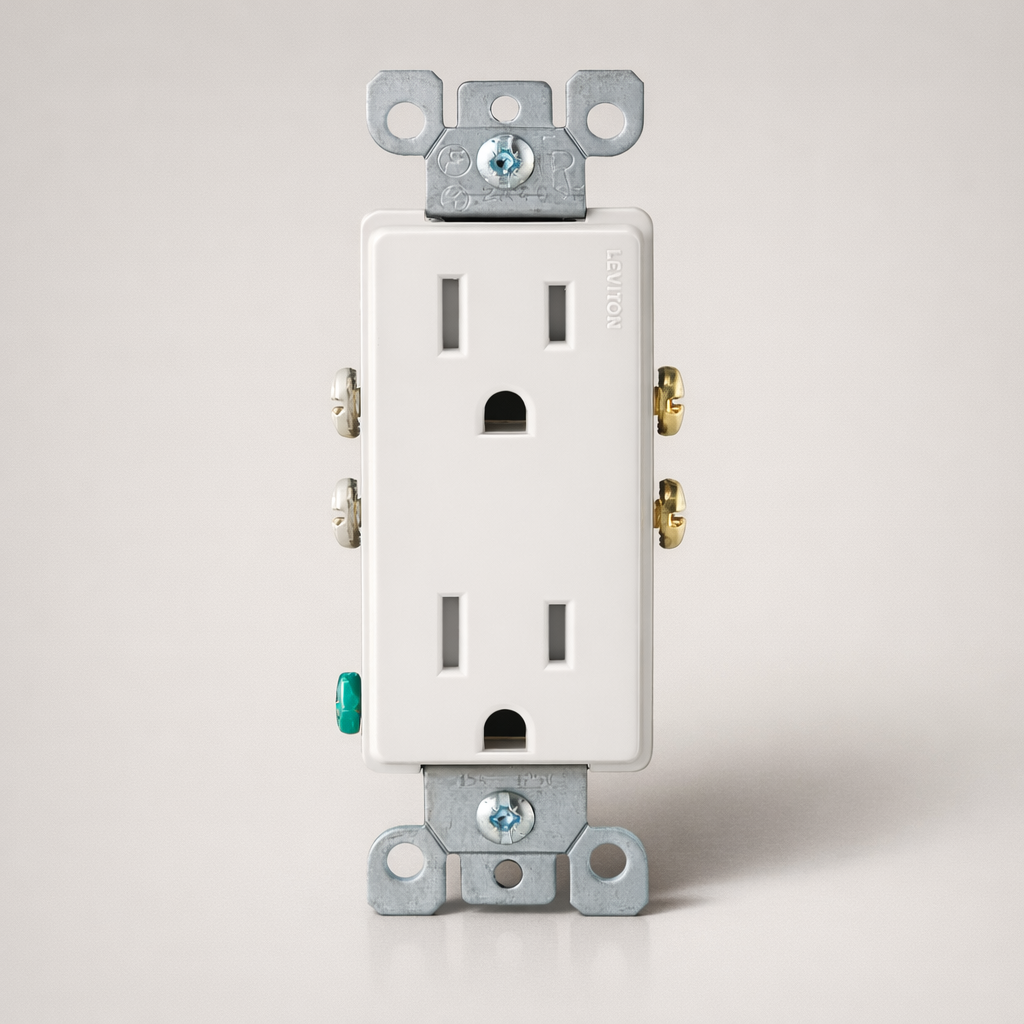

Since tamper-resistant receptacles became mandatory in Canadian residential construction, the spring-shutter outlet stopped being an upgrade and became the baseline — the CEC requires it in every new and renovated home. This Leviton 15A duplex is that code-required receptacle in contractor quantity: internal shutters that only open when both blades of a plug push in together, blocking the single-object insertion that puts small children at risk. Each outlet takes Quickwire push-in terminals for #14 AWG or side-wire screws up to #12, with a self-grounding clip that bonds to a metal box automatically and captive mounting screws pre-staged in the strap so nothing rolls off the rough-in. The high-impact thermoplastic face resists scuffs and fading, and the NEMA 5-15R configuration fits every standard residential plug. Ten receptacles to a box, priced for the electrician outletting a whole house to code.
Features
- Tamper-resistant — internal shutters open only for a two-blade plug, meeting CEC/NEC residential requirements
- Code-required — mandatory in new and renovated Canadian residential construction
- Dual wiring — Quickwire push-in for #14 AWG plus side-wire screws to #12 AWG
- Self-grounding clip — auto-bonds to a grounded metal box, speeds installation
- Captive mounting screws — pre-staged in the strap so they don't roll off during rough-in
- High-impact thermoplastic — resists impacts, scratches, and fading over time
- NEMA 5-15R — standard residential duplex, fits every common plug
Specifications
- Brand: Leviton
- Model: T5325
- Amperage: 15 A
- Voltage: 125 V AC
- NEMA Config: 5-15R
- Configuration: 2-Pole, 3-Wire, Grounding
- Feature: Tamper-Resistant (TR)
- Termination: Quickwire push-in (#14 AWG) & side wire (#12–14 AWG)
- Strap: Steel, zinc-plated
- Colour: White
- Pack: 10 receptacles
