A Shower Pan Without the Mud

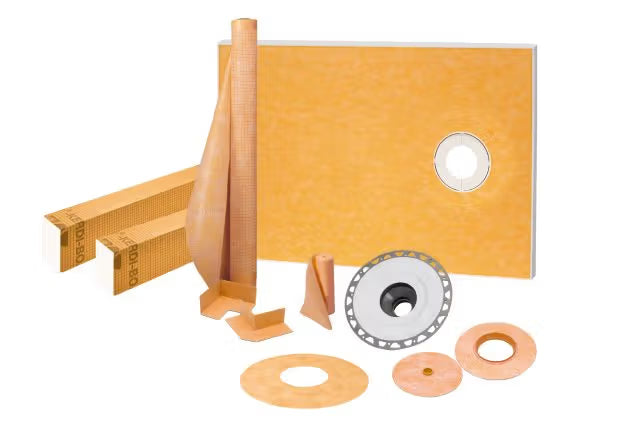

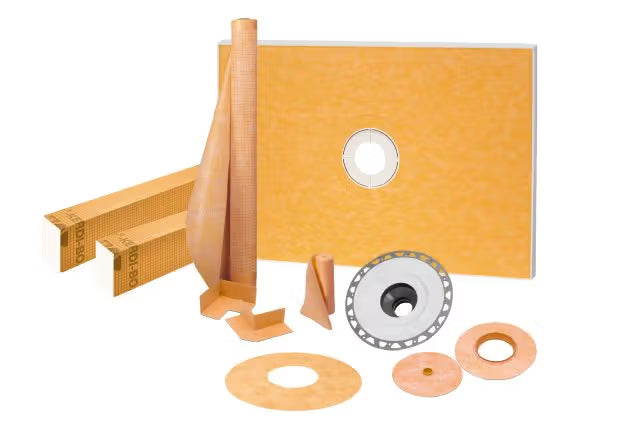

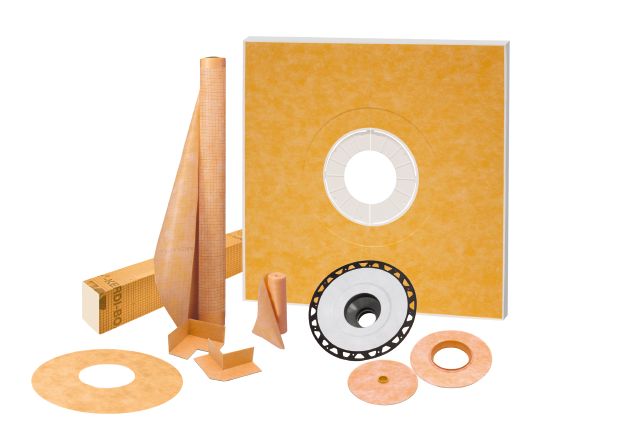

A traditional shower pan means packing a mortar bed, setting a liner, and hoping the slope you floated actually drains. The Schluter KERDI-SHOWER-KIT replaces that entire sequence with a pre-sloped, high-strength EPS foam tray and a bonded waterproofing assembly that tile sets onto directly — no mud pan, no liner, no saturation. Each kit arrives with the tray, KERDI-BOARD curbs, KERDI waterproofing membrane, KERDI-BAND seam strip, preformed KERDI-KERECK inside and outside corners, a pipe seal, a mixing valve seal, and the KERDI-DRAIN bonding flange with a 2 inch ABS outlet that solvent-welds straight to an ABS waste line. The flange's fleece-covered face bonds into thin-set so the membrane ties continuously into the drain, which is where a shower usually fails. Choose from four tray sizes and, on the 38 by 60, a centre or off-set outlet to match your rough-in. Waterproof and vapor-tight for standard tiled showers and residential steam showers when built per the handbook. Note that the drain grate is ordered separately, so the finish is yours to pick. Genuine Schluter, stocked at our Scarborough counter for will-call or GTA delivery.
Features
- No mortar bed required — the pre-sloped EPS foam tray replaces the traditional packed-mud shower pan
- Everything but the grate — tray, curbs, KERDI membrane, KERDI-BAND, drain flange, corners, and both seals in one box
- 2 inch ABS bonding flange — solvent-welds to ABS waste lines, with a fleece-covered flange that bonds into thin-set
- Integrated sloped flange — bonds KERDI membrane directly to the drain for a continuous waterproof plane
- Watertight bonded assembly — tile goes straight onto the membrane, no liner and no saturation
- Suits standard tiled showers and residential steam showers — vapor-tight when assembled per the handbook
- Four sizes and two outlet positions — 48x48, 38x60, 48x72, and 72x72, center or off-set drain
- Grate chosen separately — pick the finish and style that matches the tile
Specifications
- Kit Type: Complete shower waterproofing kit, without grate
- Tray Material: High-strength expanded polystyrene (EPS) foam, pre-sloped
- Drain Flange: KERDI-DRAIN integrated bonding flange, ABS
- Outlet Size: 2 in (50 mm)
- Flange Connection: Solvent cement to ABS waste line
- Membrane: KERDI bonded waterproofing membrane
- Seam Sealing: KERDI-BAND waterproofing strip
- Corners: KERDI-KERECK preformed inside and outside corners
- Seals: KERDI-SEAL-PS pipe seal; KERDI-SEAL-MV mixing valve seal
- Curbs: KERDI-BOARD shower curbs

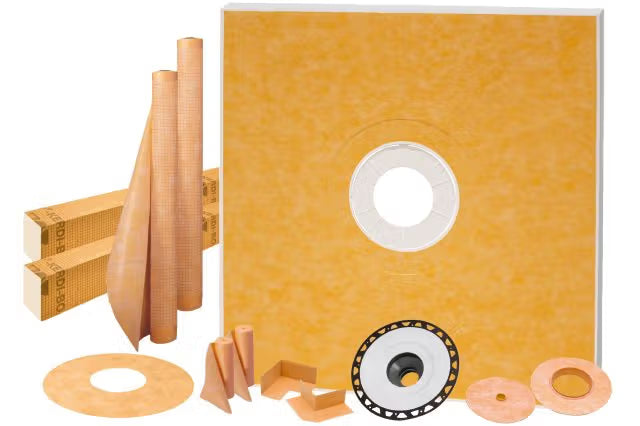

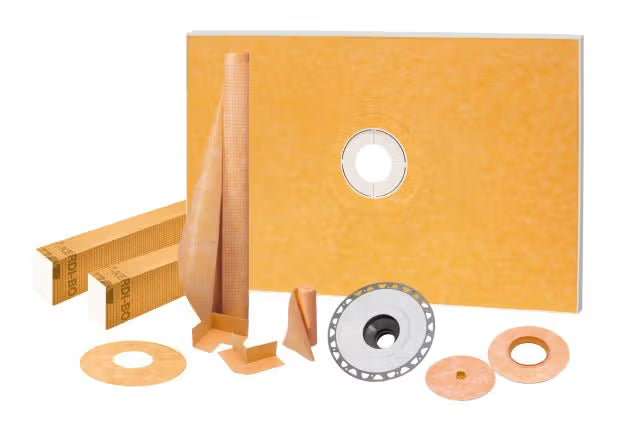

- Tray Sizes: 48" x 48"; 38" x 60"; 48" x 72"; 72" x 72"
- Outlet Positions: Center; Off-set (38" x 60" only)
- Grate: Not included; ordered separately
- Application: Standard tiled showers and residential steam showers
- Installation: Bonded assembly per Schluter Shower System Installation Handbook
