Quiet Protection, Built to Code

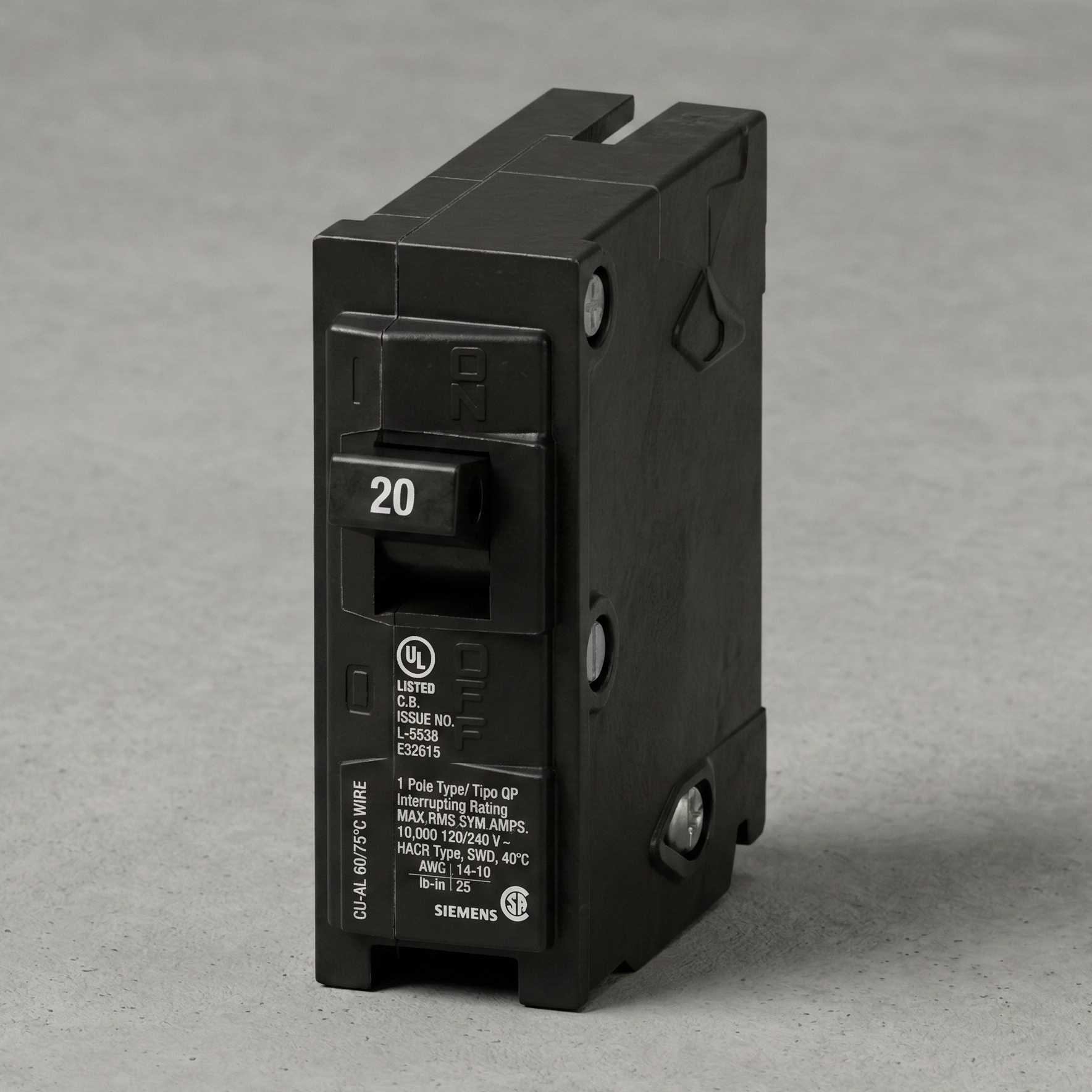

The Siemens Q120 20-amp 1-pole circuit breaker carries the heavier branch circuits in a residential load centre — kitchen counter receptacles, garage outlets, and dedicated 20-amp runs that a 15-amp breaker can't legally serve. Type QP plug-in construction snaps into Siemens EQ, PL, and ES series panels without bolts, and the Insta-Wire terminal lands a #14–#10 conductor in seconds rather than fighting a captive screw. Inside, a calibrated thermal-magnetic mechanism handles the two failure modes that matter: it rides out the slow heat of a sustained overload without nuisance tripping, then opens hard and fast on a dead short, with a 10 kAIC interrupting rating that holds its ground on a 120/240V service. It drops straight in as a replacement for legacy Murray MP120 breakers, so panel upgrades and renovation work don't stall on a discontinued part. CSA-certified and UL-listed, sourced through verified Siemens supply — not the refurbished or counterfeit stock that circulates on open marketplaces — it earns its single slot in the panel and asks nothing further of it.
Features
- Type QP plug-in design — snaps into Siemens EQ, PL, and ES load centres with no bolts or busbar hardware
- Insta-Wire terminal — accepts a #14–#10 conductor straight in, cutting landing time per circuit
- Thermal-magnetic trip — rides out harmless overload surges while opening fast on a genuine short circuit
- 10 kAIC interrupting rating — clears fault current safely on standard 120/240V residential services
- Direct Murray MP120 replacement — drop-in fit for legacy panels without a busbar swap
- Factory-authentic Siemens stock — verified supply chain, not refurbished or counterfeit marketplace breakers
- SWD and HACR rated — listed for switching duty and HVAC/refrigeration branch circuits
Specifications
- Amperage: 20 A
- Poles: 1-Pole
- Voltage: 120/240V AC
- Interrupting Rating: 10 kAIC
- Breaker Type: QP (Plug-In)
- Trip Mechanism: Thermal-Magnetic
- Wire Size Range: #14–#10 AWG (Cu/Al)
- Connection: Insta-Wire
- Compatible Panels: Siemens EQ, PL, ES series
- Replaces: Murray MP120
- Listings: SWD, HACR
- Certifications: CSA Certified, UL Listed
