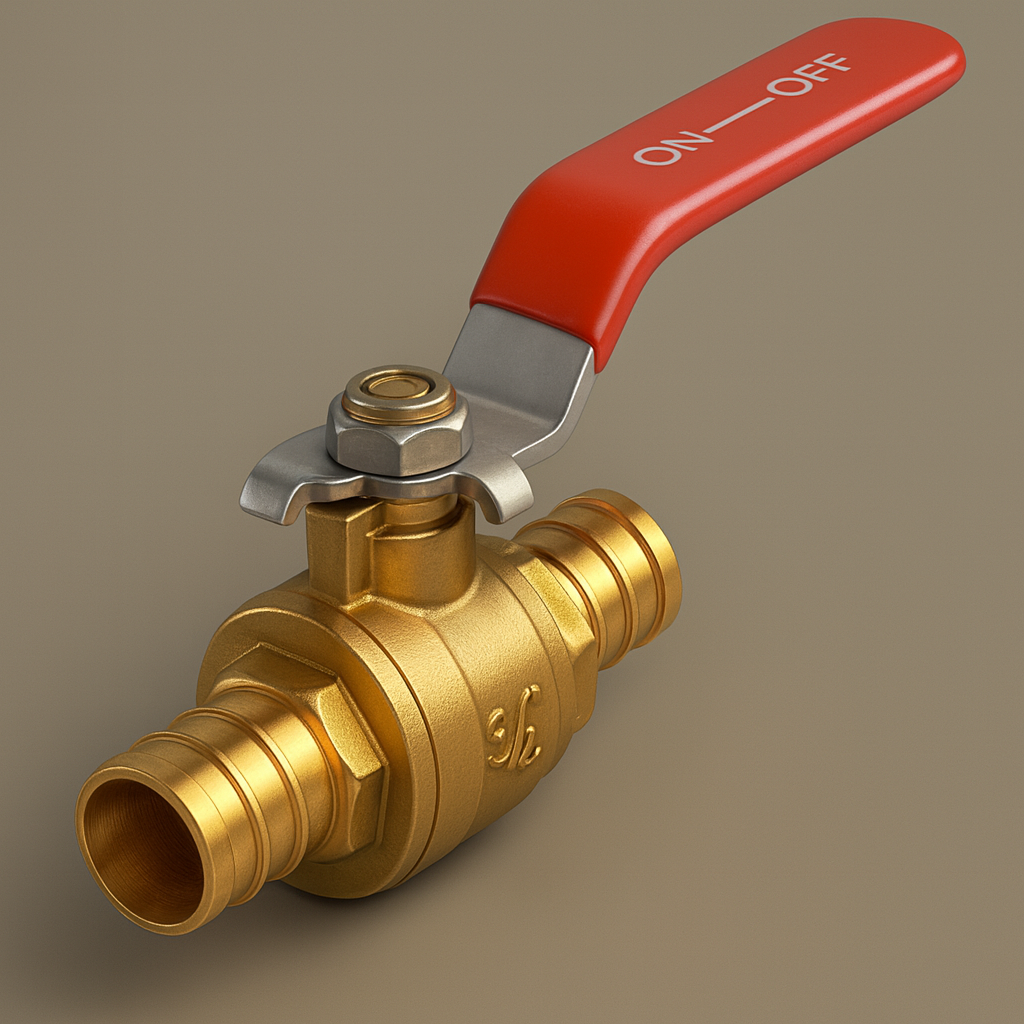

1/2″ PEX Ball Valve | Forged Lead-Free Brass | Full Port Shut-Off | Quarter-Turn Crimp Fitting
1/2″ PEX Ball Valve | Forged Lead-Free Brass | Full Port Shut-Off | Quarter-Turn Crimp Fitting
Actual product specifications and colors may differ from the images displayed.
Regular price
$5.37 CAD
Regular price
Sale price
$5.37 CAD
Shipping calculated at checkout.
Couldn't load pickup availability
Pickup available at GD KennedyUsually ready in 2 hours
View store information
-
Local delivery available for orders over $500
-
Eligible for Shipping
Solid forged strength. Instant flow control.
Establish absolute control over your water distribution with this heavy-duty 1/2" PEX Ball Valve. Forged from a solid block of Lead-Free Brass, this valve offers superior structural integrity and leak resistance compared to cast alternatives. Engineered for the professional, it features a Full Port design that allows unrestricted water flow, ensuring no drop in pressure at your fixtures. The smooth, quarter-turn handle provides instant on/off isolation, making it the reliable choice for potable water and hydronic heating systems.
Features
- Forged Strength: Manufactured from Forged Brass rather than cast metal, eliminating the risk of internal pinholes and ensuring high tensile strength under pressure.
- Full Port Flow: Designed with a large internal bore that matches the pipe diameter, preventing the water pressure drops common with standard "reduced port" valves.
- Quarter-Turn Operation: A simple 90-degree turn of the vinyl-coated steel handle provides instant, positive shut-off, far superior to multi-turn gate valves that can wear out.
- Maintenance-Free Seal: Features a blow-out proof stem and dual O-ring packing (EPDM) to prevent leaks around the handle stem over years of daily use.
- Universal PEX Fit: The 1/2" barbed ends are machined to ASTM F1807 standards, making them compatible with all PEX-B tubing and crimp/clamp connection systems.
Specifications
- Size: 1/2" PEX x 1/2" PEX (Barb x Barb)
- Valve Type: Full Port Ball Valve (Non-Drain)
- Material: Lead-Free Forged Brass
- Pressure Rating: 400 WOG (Water/Oil/Gas) / 150 PSI working
- Connection Style: Crimp / Clamp (ASTM F1807)
- Certifications: cUPC, NSF/ANSI 61, NSF 372 (Lead-Free)
