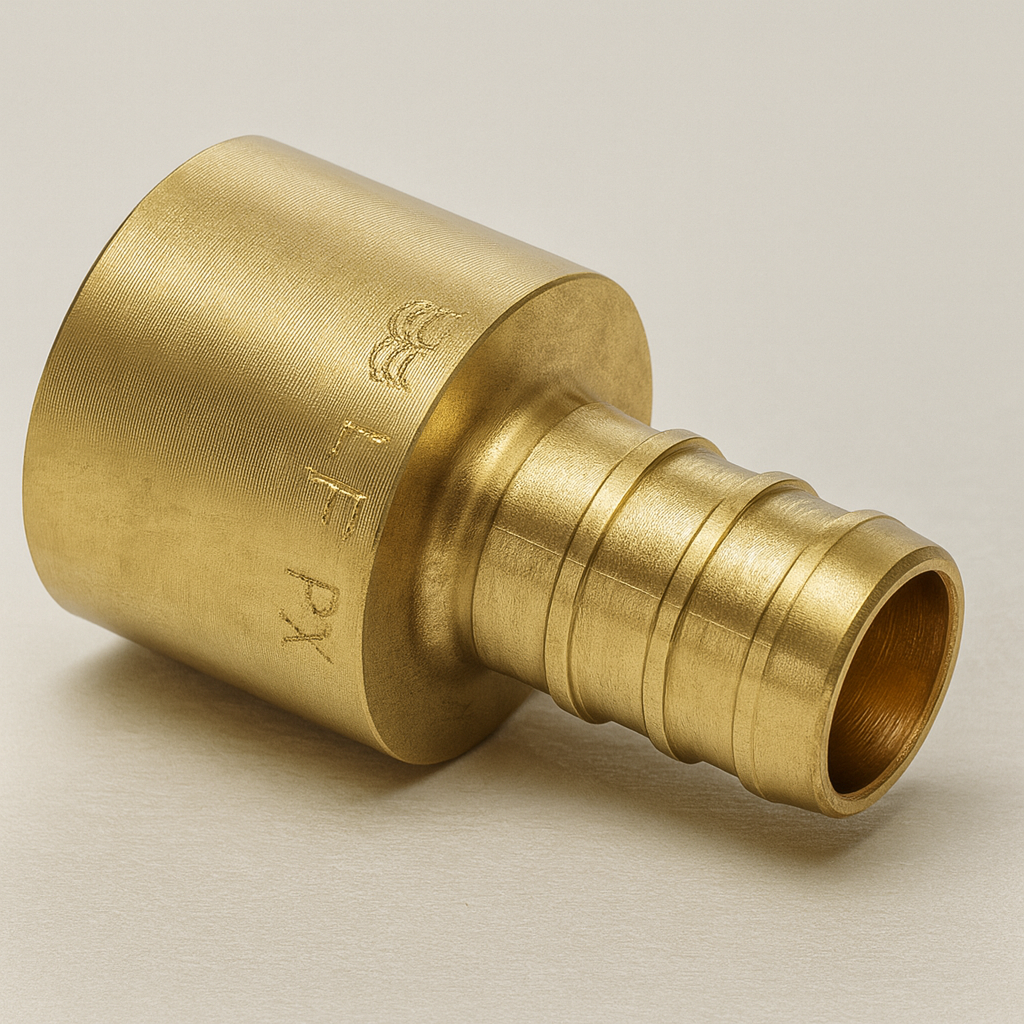

1/2" Brass PEX × Male Sweat Street Adapter (F1807) — Lead-Free, cUPC
1/2" Brass PEX × Male Sweat Street Adapter (F1807) — Lead-Free, cUPC
Actual product specifications and colors may differ from the images displayed.
Couldn't load pickup availability
Pickup available at GD KennedyUsually ready in 2 hours
View store information
-
Local delivery available for orders over $500
-
Eligible for shipping
Brass PEX Male Sweat Adapter
No room in the joist bay for a stub of copper? That's exactly the job of the brass PEX × male sweat street adapter. Its copper end is sized like 1/2″ pipe itself, so it solders directly inside an existing elbow, tee, or coupling — no jumper, one less solder joint, an inch of space saved where there wasn't an inch to spare. The other end is a 1/2″ ASTM F1807 barb that crimps to PEX with a standard copper ring or stainless steel pinch clamp once the soldered side has cooled. Machined from lead-free brass, cUPC certified and rated to NSF/ANSI 61, it makes the copper-to-PEX handoff exactly where the old system already branches. The order never changes: solder first, let it cool, then crimp — the barb never sees the torch. Sold as a single for the service call or a 50-pack for the van that lives in retrofit country.
Features
- Street (FTG) design — male sweat end fits inside copper elbows, tees, and couplings, no pipe stub needed
- Saves a joint and an inch — direct transition where space is tightest, one less place to leak
- 1/2″ F1807 crimp barb — seals with copper crimp rings or stainless steel pinch clamps
- Lead-free forged brass — cUPC certified, NSF/ANSI 61 rated for potable water and hydronics
- Torch-then-crimp install — solder the street end first, let it cool, then crimp the PEX
- Single or 50-pack — one for the service call, a contractor bag for retrofit crews
Specifications
- Fitting Type: Street transition adapter (straight)
- Connection A: 1/2″ male sweat (street / FTG — fits inside fittings)
- Connection B: 1/2″ PEX barb (ASTM F1807)
- Copper Compatibility: Fits inside standard 1/2″ sweat fittings
- Material: Lead-free forged brass
- Size: 1/2″ × 1/2″
- Pack Options: Single or 50-pack
- Compatible Rings: Copper crimp rings or stainless steel pinch clamps
- Tubing Compatibility: PEX-A, PEX-B, PEX-C (SDR-9)
- Applications: Copper-to-PEX retrofits, potable water, hydronic heating
- Certifications: cUPC, NSF/ANSI 61
