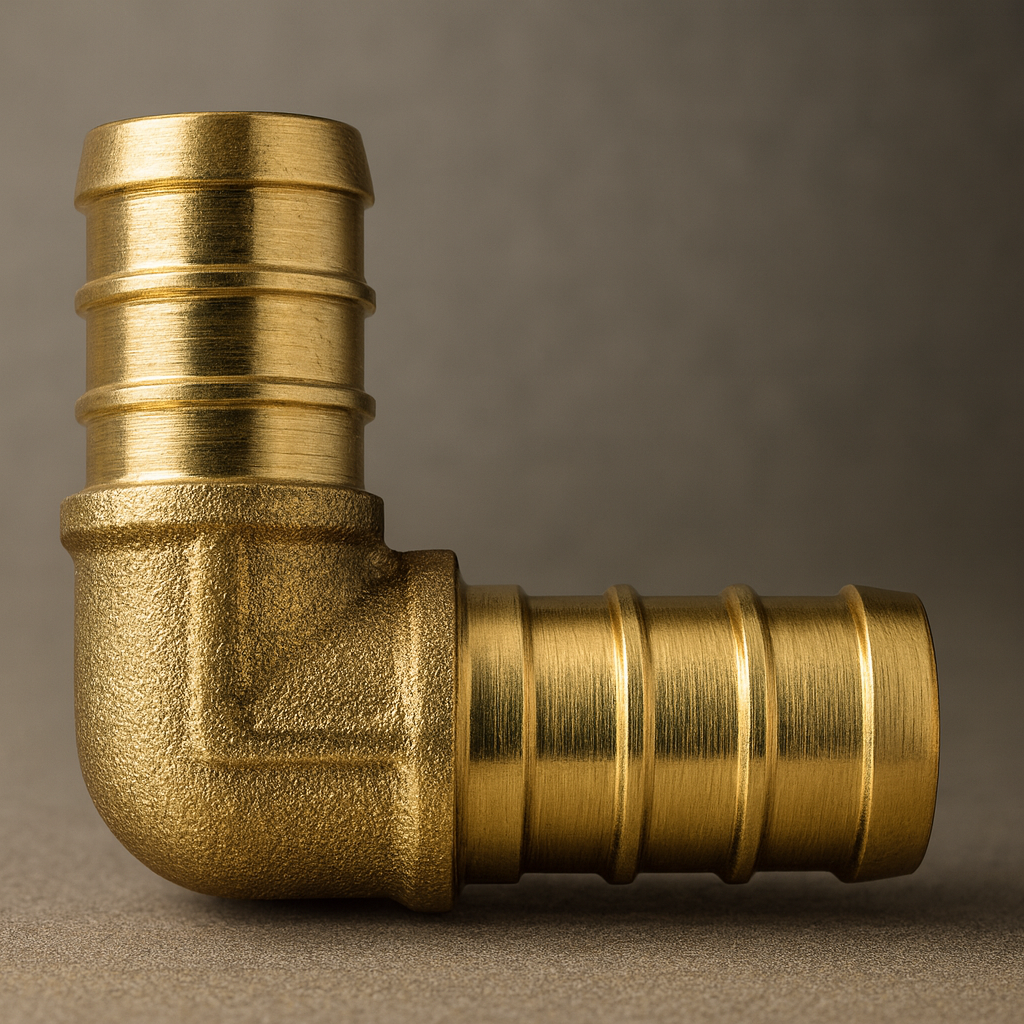

1/2" Brass PEX 90° Elbow (Crimp F1807) — Lead-Free DZR, cUPC Certified
1/2" Brass PEX 90° Elbow (Crimp F1807) — Lead-Free DZR, cUPC Certified
Actual product specifications and colors may differ from the images displayed.
Couldn't load pickup availability
Pickup available at GD KennedyUsually ready in 2 hours
View store information
-
Local delivery available for orders over $500
-
Eligible for shipping
Brass PEX 90° Elbow
PEX bends, but it doesn't bend sharply — force a tight corner and the tubing kinks. The brass PEX 90° elbow exists for that corner: a forged, lead-free DZR fitting that turns a 1/2″ line hard through studs, joists, and cabinet backs while the tubing stays relaxed on either side. Machined to ASTM F1807, its barbs seal with standard copper crimp rings or stainless steel pinch clamps — the same tool that does every other fitting on the job. Rated to 100 psi at 180°F and certified for potable water, it serves supply lines and hydronic loops on any SDR-9 PEX — A, B, or C. The bore runs full-flow for the size, so fixtures downstream don't feel the corner. Sold as a single for the service call or a 50-pack for the rough-in, it's the fitting that turns a clean drawing into a clean wall cavity — and then disappears into it.
Features
- Lead-free DZR forged brass — dezincification-resistant in hard water, safe for potable lines
- True 90° turn without kinking — routes 1/2″ PEX through studs, joists, and tight cabinet backs
- ASTM F1807 crimp barbs — seal with standard copper crimp rings or stainless steel pinch clamps
- Rated 100 psi at 180°F — approved for hot, cold, and hydronic heating distribution
- Full-flow bore — minimizes turbulence and pressure loss where the line changes direction
- Single or 50-pack — one fitting for the service call, a contractor box for the rough-in
Specifications
- Fitting Type: Elbow, 90°
- Connection: PEX barb × PEX barb
- Standard: ASTM F1807 (crimp)
- Material: Lead-free DZR forged brass
- Size: 1/2″ × 1/2″
- Pack Options: Single or 50-pack
- Compatible Rings: Copper crimp rings or stainless steel pinch clamps
- Tubing Compatibility: PEX-A, PEX-B, PEX-C (SDR-9)
- Pressure Rating: 100 psi at 180°F
- Applications: Potable water, hydronic heating, snow melt
- Certifications: cUPC, NSF/ANSI 61, NSF 372
