1/2" Brass Female Sweat × PEX 90° Elbow (F1807) — Lead-Free C46500, cUPC
1/2" Brass Female Sweat × PEX 90° Elbow (F1807) — Lead-Free C46500, cUPC
Actual product specifications and colors may differ from the images displayed.
Couldn't load pickup availability
Pickup available at GD KennedyUsually ready in 2 hours
View store information
-
Local delivery available for orders over $500
-
Eligible for shipping

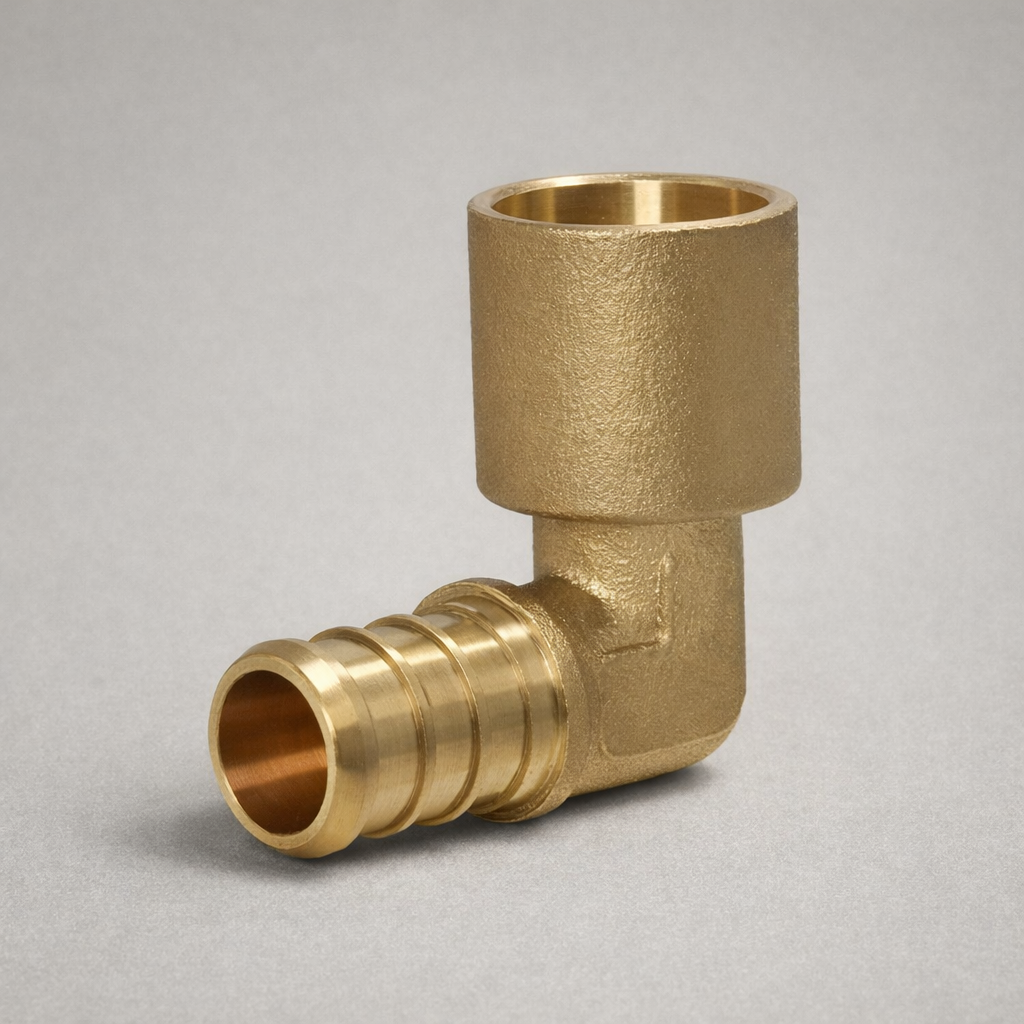

Brass Sweat × PEX Elbow
Copper comes out of the wall and PEX needs to turn — the brass female sweat × PEX 90° elbow handles both in one forged piece. On one end, a solder cup that sweats onto standard 1/2″ copper; on the other, a 1/2″ ASTM F1807 crimp barb, set at a right angle so a retrofit line changes direction the moment it changes material. That geometry earns its keep in tight renovation spaces, replacing a sweat elbow, a nipple, and a transition coupling with a single fitting — fewer joints, fewer places to leak behind a sealed wall. Forged from lead-free C46500 brass, cUPC certified and rated to NSF/ANSI 61 for potable water and hydronic service, it installs in the order every plumber knows: solder first, let it cool, then crimp — the barb never sees the torch. One for the service call, or the 25-pack for crews that spend their weeks converting old copper to new PEX.
Features
- 90° turn and copper-to-PEX transition in one — replaces an elbow, nipple, and coupling at the corner
- 1/2″ female sweat cup — solders onto standard Type K, L, and M copper with ordinary flux and solder
- 1/2″ F1807 crimp barb — seals with copper crimp rings or stainless steel pinch clamps
- Forged lead-free C46500 brass — denser and more leak-resistant than cast fittings behind sealed walls
- cUPC certified, NSF/ANSI 61 — approved for potable water and hydronic heating in Canada and the U.S.
- Single or 25-pack — one for the service call, a contractor box for copper-conversion crews
Specifications
- Fitting Type: Transition elbow, 90°
- Connection A: 1/2″ female sweat (solder cup)
- Connection B: 1/2″ PEX barb (ASTM F1807)
- Copper Compatibility: Type K, L, M hard copper pipe
- Material: Lead-free forged brass (C46500)
- Size: 1/2″ × 1/2″
- Pack Options: Single or 25-pack
- Compatible Rings: Copper crimp rings or stainless steel pinch clamps
- Tubing Compatibility: PEX-A, PEX-B, PEX-C (SDR-9)
- Applications: Copper-to-PEX retrofits, potable water, hydronic heating
- Certifications: cUPC, NSF/ANSI 61
