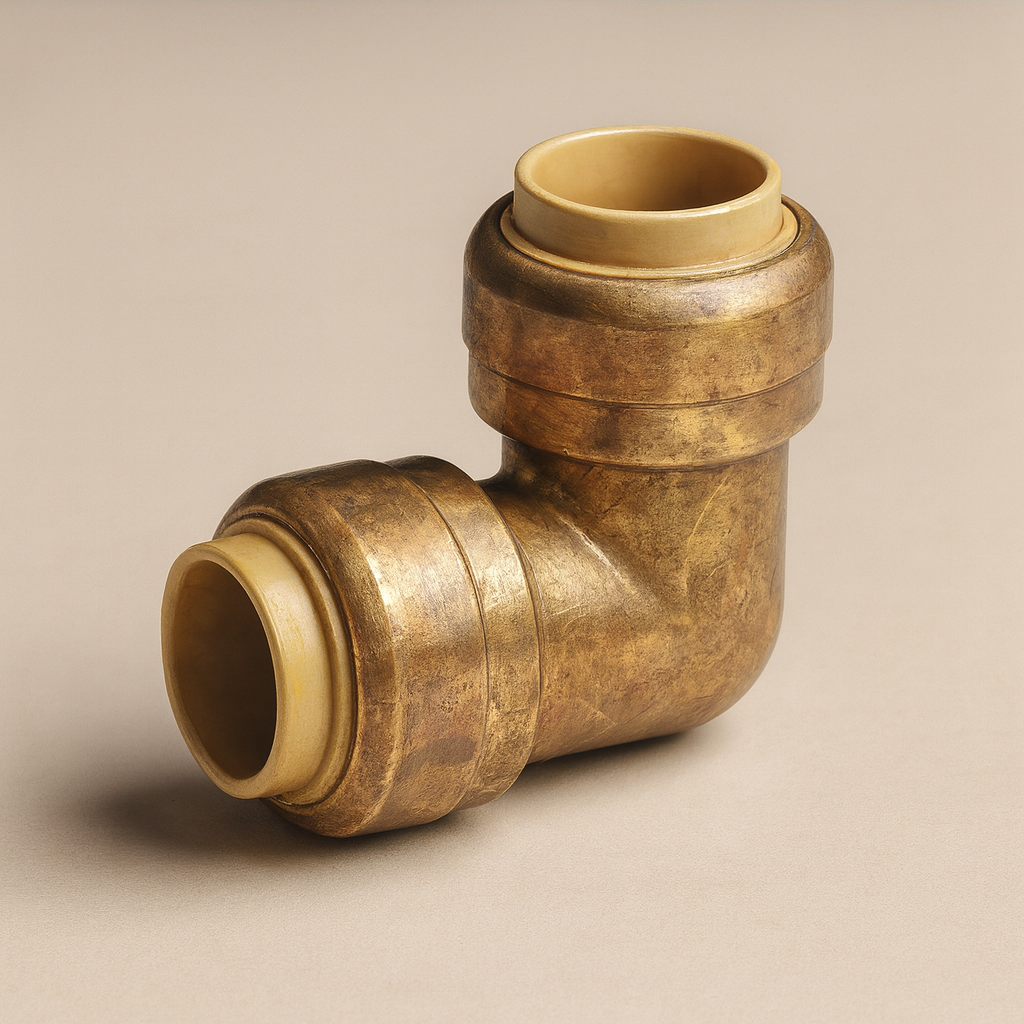

1/2" Brass Push-Fit 90° Elbow — Tool-Free, PEX · Copper · CPVC
1/2" Brass Push-Fit 90° Elbow — Tool-Free, PEX · Copper · CPVC
Actual product specifications and colors may differ from the images displayed.
Couldn't load pickup availability
Pickup available at GD KennedyUsually ready in 2 hours
View store information
-
Eligible for shipping
Brass Push-Fit Elbow
Some joints happen where a torch can't go and a crimp tool can't reach — the brass push-fit elbow is built for them. A flooded ceiling bay, a live repair under a full cabinet, two inches of stub in a finished wall: cut the line square, deburr, mark the insertion depth, and push — the stainless steel grab ring bites, the internal O-ring seals, and the 1/2″ line turns 90° with no tool, no flame, and no ring to gauge. It connects PEX, copper, and CPVC interchangeably, which is what makes push-fit the emergency-repair standard: whatever pipe the wall surprises you with, the same fitting lands on it. Machined from lead-free brass for potable hot and cold service, it's removable with a disconnect clip, so a temporary repair can become permanent — or come apart cleanly when the renovation starts. One in the drawer saves the Sunday call.
Features
- Tool-free push-to-connect — no torch, no crimp tool, no ring; cut square, deburr, mark depth, push
- Connects PEX, copper, and CPVC — one fitting for whatever pipe the wall surprises you with
- Stainless steel grab ring and internal O-ring — bites and seals in one push, holds under pressure
- Removable with a disconnect clip — repairs come apart cleanly instead of being cut out
- Lead-free forged brass — rated for potable hot and cold water service
- Seals wet lines — makes live repairs where soldering is impossible
Specifications
- Fitting Type: Elbow, 90° (push-to-connect)
- Connection: Push-fit × push-fit
- Size: 1/2″
- Pipe Compatibility: PEX, copper, CPVC
- Material: Lead-free forged brass with stainless steel grab ring
- Installation: Cut square, deburr, mark insertion depth, push to seat
- Removal: Disconnect clip (sold separately)
- Applications: Repairs, retrofits, live-line work, potable water
- Certifications: NSF/ANSI 14-2010a, NSF/ANSI 61 & 372 (AB 1953), cUPC
