Up from the floor. Straight to the fixture.

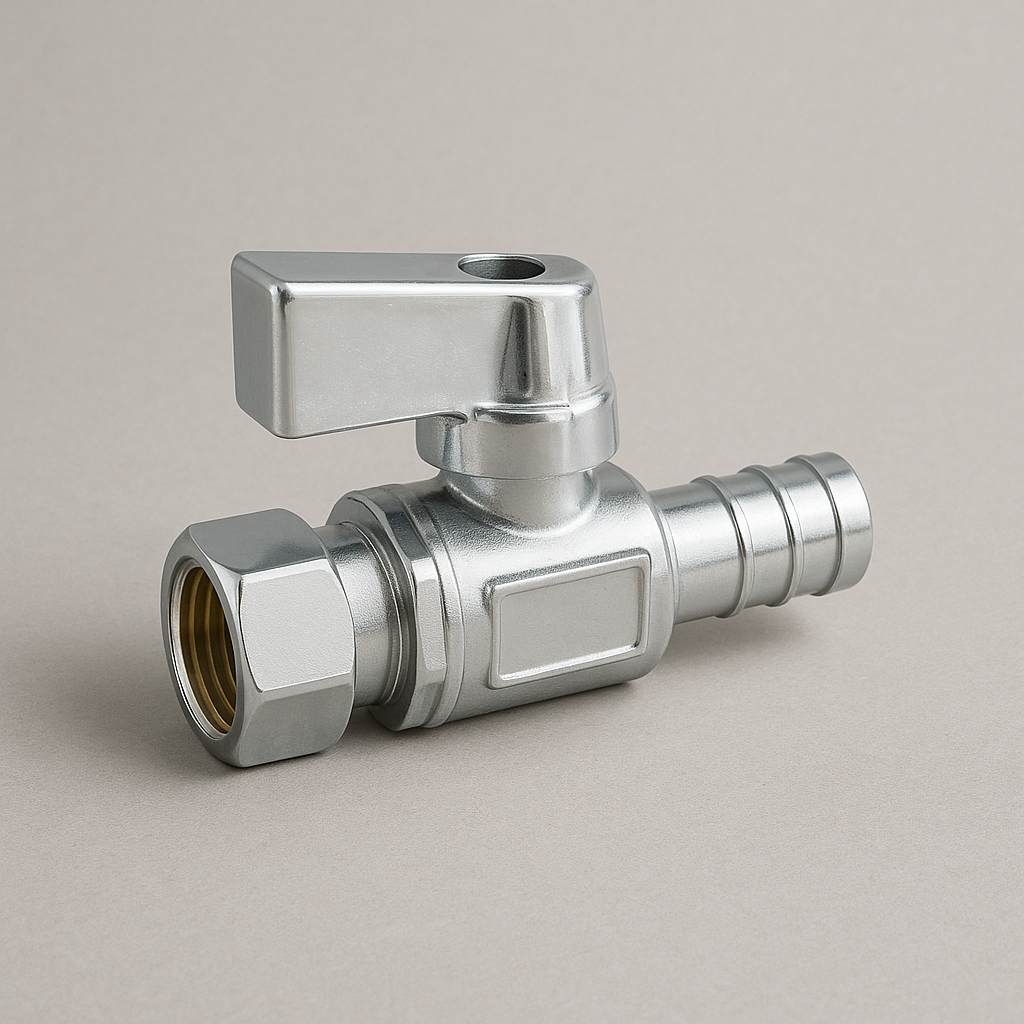

A supply stop is the valve you're glad exists the day a faucet needs pulling — one quarter-turn and the fixture is isolated while the rest of the house keeps its water. This straight stop bridges a 1/2″ PEX rough-in coming up out of the floor to the 3/8″ compression riser that feeds a faucet, toilet, or dishwasher, so the run goes straight up with no angle. The PEX inlet crimps on with a copper ring or stainless clamp; the 3/8″ compression outlet tightens onto a standard flexible supply with just a nut and ferrule. Inside is a quarter-turn ball rather than an old multi-turn washer stem, so it seats positively every time and won't seize half-open after years untouched. The body is lead-free brass under polished chrome, clean enough to leave exposed under a pedestal sink or open vanity. It's the small part that turns a fixture swap into a five-minute job instead of a trip to shut off the main.
Features
- Straight inline body — direct vertical connection for supply lines rising through the floor of a vanity or behind a toilet
- 3/8″ OD compression outlet — the standard size for faucet, toilet, and dishwasher supply risers; seals with a nut and ferrule, no solder
- 1/2″ PEX inlet (ASTM F1807) — crimps with copper rings or stainless clamps for a leak-free connection
- Quarter-turn ball mechanism — positive 90° on/off that won't seize half-open like a multi-turn washer stem
- Chrome-plated lead-free brass — corrosion-resistant and clean enough to leave exposed on pedestal sinks and open consoles
Specifications
- Valve Type: Straight Stop (Inline), Quarter-Turn
- Inlet: 1/2″ PEX Barb (ASTM F1807)
- Outlet: 3/8″ OD Compression
- Material: Lead-Free Brass, Chrome-Plated
- Handle: Quarter-Turn Oval Lever
- Size: 1/2″ PEX × 3/8″ OD
- Applications: Faucet, toilet, and dishwasher supply lines (floor entry)
- Pack Options: Single or 25-pack
- Certifications: cUPC, NSF/ANSI 61, NSF 372
- Country of Origin: China
- Warranty: 5-Year Limited
