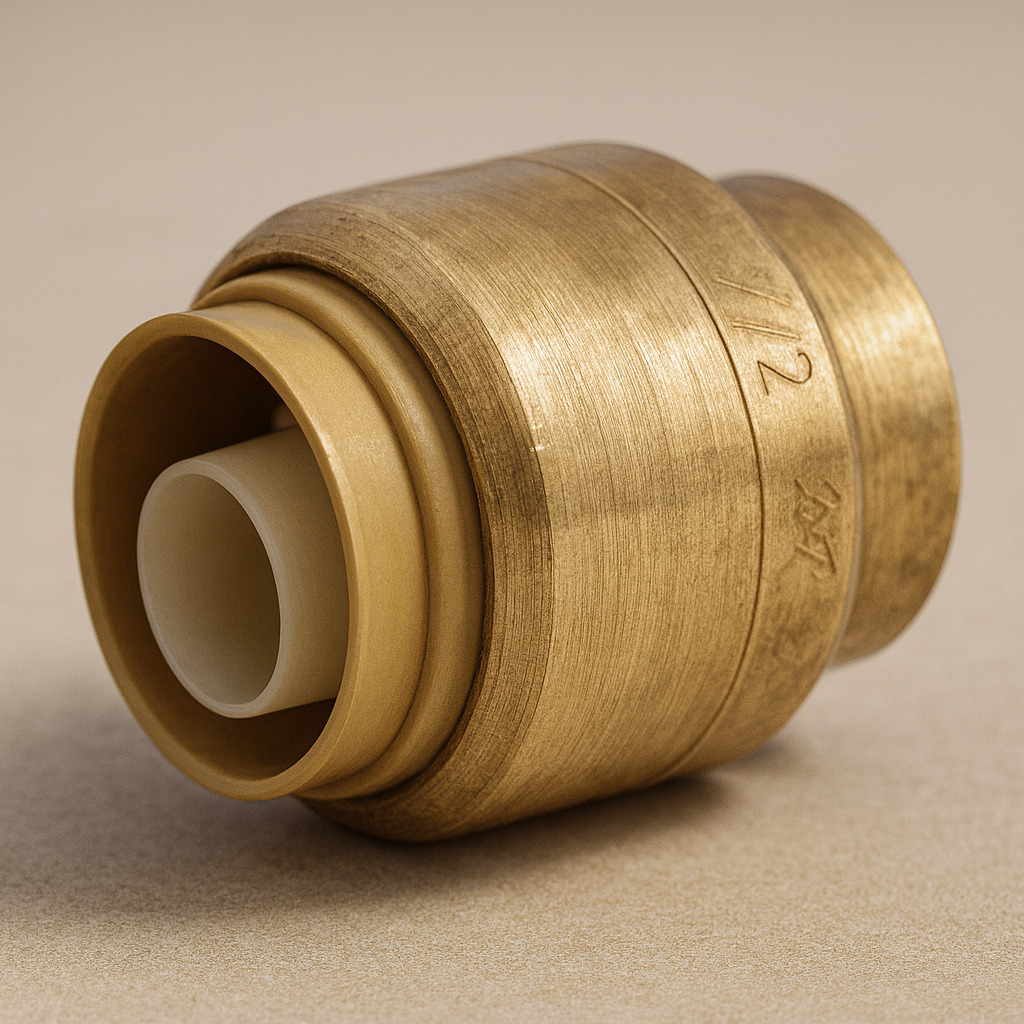

1/2" Brass Push-Fit Cap — Tool-Free Test Cap, PEX · Copper · CPVC

1/2" Brass Push-Fit Cap — Tool-Free Test Cap, PEX · Copper · CPVC

Actual product specifications and colors may differ from the images displayed.

Regular price $3.10 CAD
Regular price Sale price $3.10 CAD
Sale Sold out
Shipping calculated at checkout.
Pack Size
Liquid error (sections/main-product line 571): Could not find asset snippets/pickup-availability.liquid
  • Eligible for shipping
View full details

Brass Push-Fit Cap

Rough-in done, inspector booked, every stub open — the brass push-fit cap seals them in seconds and unseals them the day the fixtures arrive. It presses onto a 1/2″ PEX, copper, or CPVC stub, holds the line through the pressure test, and comes back off with a disconnect clip instead of a hacksaw. No torch, no crimp ring, no sacrificed inch of pipe — where a crimped plug is a permanent decision, this cap is a reusable one, moving from stub to stub as each fixture lands. The stainless steel grab ring bites the pipe, the internal O-ring makes the seal, and full insertion is the only technique involved: cut square, deburr, mark the depth, push. Machined from lead-free brass for potable systems, it can also permanently retire a line where code allows an accessible cap. Keep a handful in the van — the fastest closed line in the trade.

Features
  • Tool-free stub sealing — presses onto an open line in seconds, no torch, no crimp ring
  • Removable and reusable — a disconnect clip releases it intact, unlike a crimped plug
  • Caps PEX, copper, and CPVC — one cap for every stub on a mixed-material job
  • Stainless steel grab ring and internal O-ring — holds pressure through the rough-in test
  • Lead-free forged brass — rated for potable hot and cold water systems
  • Test cap today, termination tomorrow — permanent use where code allows an accessible cap
Specifications
  • Fitting Type: Cap / test cap (push-to-connect)
  • Connection: Push-fit (single end)
  • Size: 1/2″
  • Pipe Compatibility: PEX, copper, CPVC
  • Material: Lead-free forged brass with stainless steel grab ring
  • Installation: Cut square, deburr, mark insertion depth, push to seat
  • Removal: Disconnect clip (sold separately)
  • Applications: Pressure testing, stub-out capping, line termination
  • Certifications: NSF/ANSI 14-2010a, NSF/ANSI 61 & 372 (AB 1953), cUPC
Warranty Information
5-year limited warranty from D.N. Group Enterprise Inc. covering defects in material and workmanship, original purchaser only. Damage from improper installation, misuse, or accident is not covered. Remedy is limited to replacement of the defective component or refund of the purchase price; removal, reinstallation, and other labour costs are excluded.
