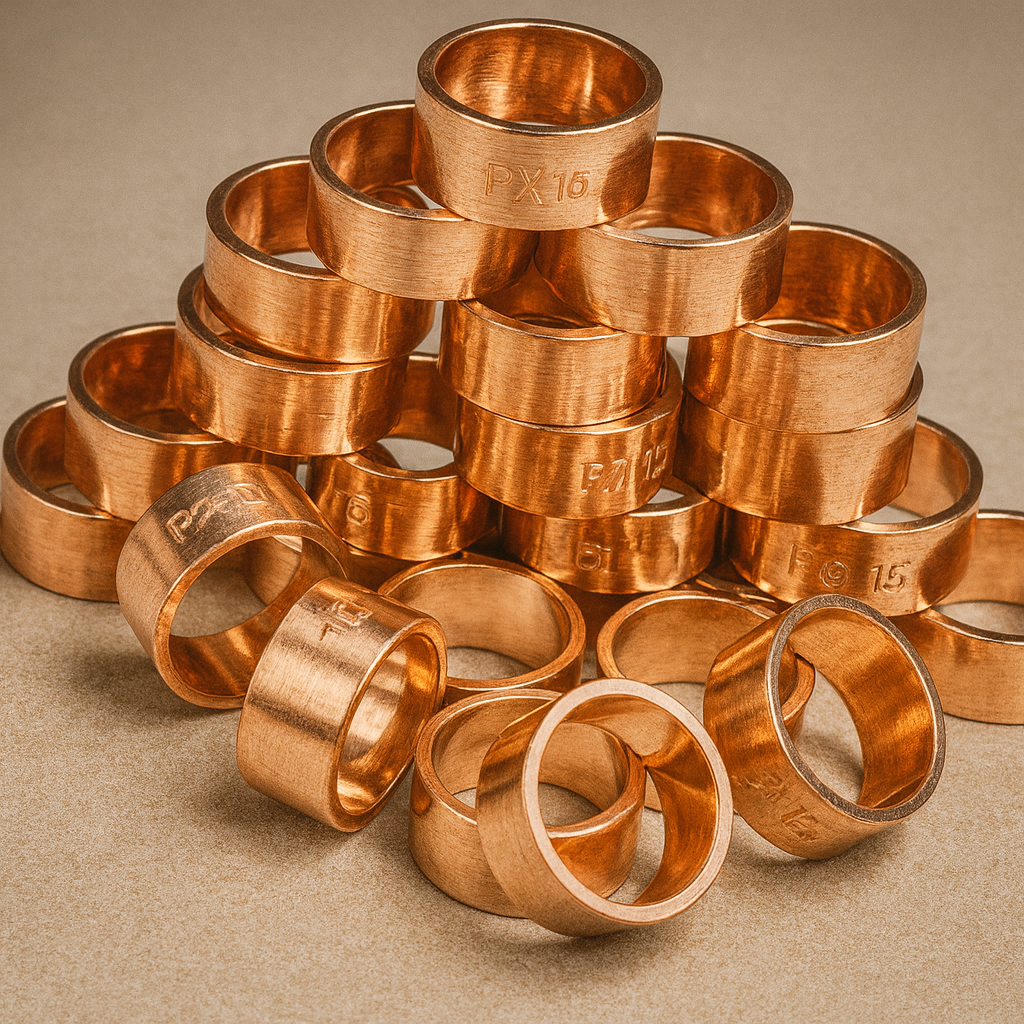

1/2″ Copper PEX Crimp Rings — 100-Pack, ASTM F1807 Annealed
1/2″ Copper PEX Crimp Rings — 100-Pack, ASTM F1807 Annealed
Actual product specifications and colors may differ from the images displayed.
Couldn't load pickup availability
Pickup available at GD KennedyUsually ready in 2 hours
View store information
-
Local delivery available for orders over $500
-
Eligible for shipping
The ring that makes the joint.

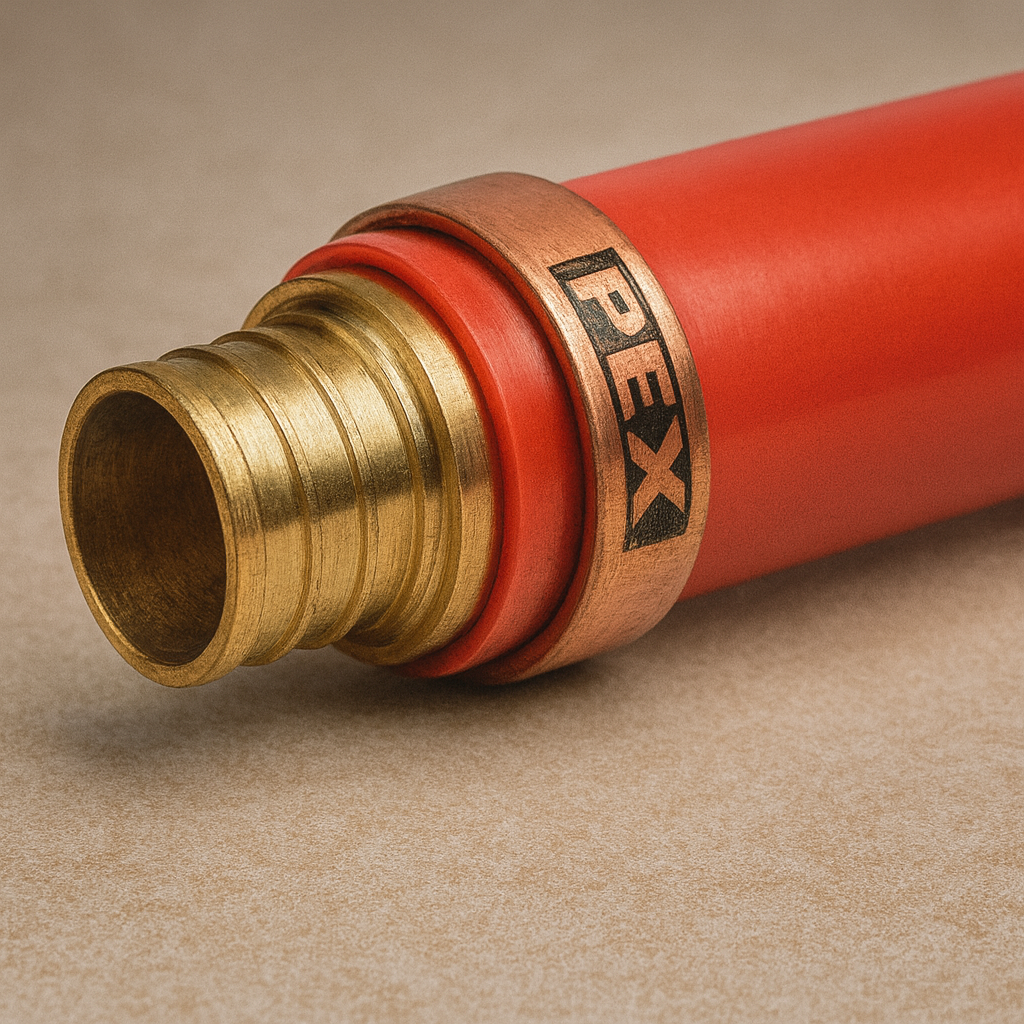

A PEX joint is only as good as the ring squeezed around it. Slide one of these over the tubing, seat the fitting, and one full compression of the crimp jaw deforms the copper permanently into the barb — a mechanical seal that doesn't loosen, back off, or need retightening a decade later. The copper is dead-soft annealed, so it yields evenly under the tool instead of springing back, and the spot stop on the ring keeps it from sliding past the fitting shoulder while you set the jaw. These are 1/2″ rings made to ASTM F1807, the same standard as the crimp fittings they close on — brass tees, elbows, couplings, valves, and stops all take the same ring. A hundred to the bag, because nobody crimps just one.
Features
- Dead-soft annealed copper — yields evenly under the crimp jaw instead of springing back
- Spot stop — holds the ring at the fitting shoulder so it can't slide out of position while you crimp
- ASTM F1807 — matches the standard of the crimp fittings, valves, and stops it seals
- Permanent mechanical seal — one full compression and the joint is set for the life of the line
- 100 rings per bag — sized for a rough-in, not a single repair
- 1/2″ — fits 1/2″ PEX-A, PEX-B, and PEX-C tubing
Specifications
- Product Type: PEX Crimp Ring (Copper)
- Size: 1/2″
- Pack: 100 rings
- Material: Annealed Copper
- Feature: Spot Stop
- Standard: ASTM F1807
- Tubing Compatibility: PEX-A, PEX-B, PEX-C
- Tool: PEX crimp tool with 1/2″ jaw; verify with go/no-go gauge
- Country of Origin: China
- Warranty: 5-Year Limited
